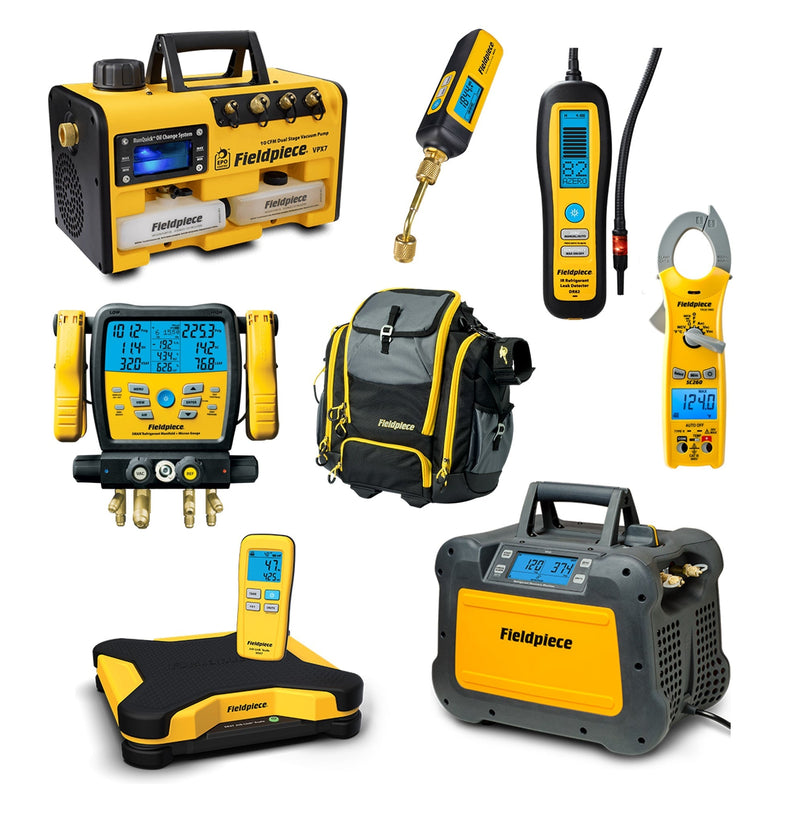

Fieldpiece Beast Mode HVAC Kit

A fantastic pack for all of your Beast Mode needs!

• 1 x Fieldpiece VPX7 283 L/M 10 CFM A2L Certified 2 Stage Vacuum Pump - VPX7INT
• 1 x Fieldpiece Recovery Unit - MR45INT
• 1 x Fieldpiece Wireless 4-Valve Digital Manifold with Micron Gauge - SM480vINT
• 1 x Fieldpiece Infrared Refrigerant Leak Detector - DR82
• 1 x Fieldpiece Wireless Probe Vacuum Gauge with LCD Display - MG44

• 1 x Fieldpiece Wireless Electronic Refrigerant Scale 114KG - SR47
• 1 x Fieldpiece True RMS AC/DC Wireless Power Clamp Meter - SC680INT
• 1 x Fieldpiece TRMS Combination Mini Clamp Meter - SC260
• 1 x Fieldpiece Tool Bag - BG44

FEATURES AND CAPABILITIES

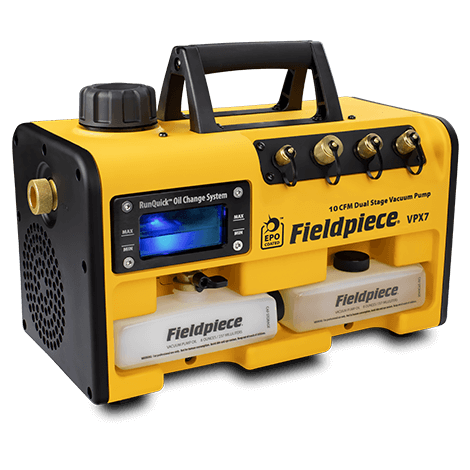

Fieldpiece VPX7 283 L/M 10 CFM A2L Certified 2 Stage Vacuum Pump - VPX7INT

The NEW Fieldpiece VPX7INT high-efficiency Vacuum Pump with RunQuick™ Oil Change System - No Fuss - No Mess

• 10 CFM (283 l/m)flow rate with 15 microns ultimate vacuum
• 3/4 HP DC motor
• RunQuick™ Oil Change System offers on-the-fly oil changes in seconds
• Extra oil bottle storage
• Includes 2 x 237ml Oil filled RunQuick Oil Cartridges
• Backlit oil reservoir to view condition of oil and system
• Water resistant to withstand direct rain
• Patented lightest weight pump
• Port Sizes: (1) 1/4”, (2) 3/8”, (1) 1/2” for easy hose connections
• Sturdy base stays upright
• Small footprint – 1,346 cubic inches
• Quarter-turn gas ballast with LED indicator
• Convenient, removable cord storage
• Error messages: indicate wrong power source or other errors
• Suitable for A2L class refrigerants
• R32, R1234YF, R1234ZE, R512A, 419B, 439A & other

WHAT'S INCLUDED

• VPX7INT Vacuum Pump

• 2 x 8oz RunQuick Oil Containers (Filled)

• Operator’s Manual

SPECIFICATIONS

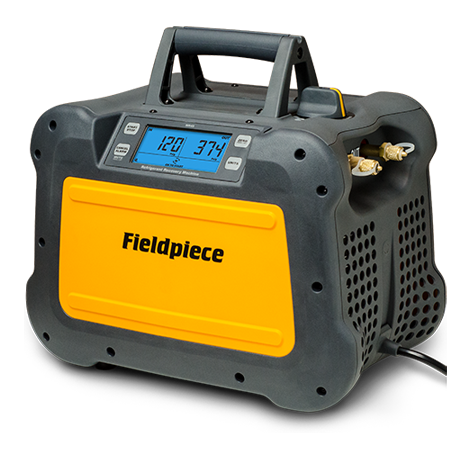

Fieldpiece Recovery Unit - MR45INT

Refrigerant Recycling has never been easier or faster with the MR45INT Recovery Machine

Dual cylinder compressor with long life and low friction with ceramic lined cylinders

• Auto Shut Off when -10 Kpa reached
• Protected from voltage drop (runs as low as 190 VAC)
• Single dial self purge
• Twice the RPMs (3,000) and twice the horsepower (1HP - 0.745kW) with DC Motor
• Extra large condenser cools faster, especially on hot days
• Light Weight at only 10 Kgs
• Water & Rain resistant
• Easy access ports
• Easy hose connections and built-in power cord storage
• Large backlit display with status messages
• UL Verified to Section 608 of EPA Clean Air Act
• UL Verified to AHRI Standard 740
• A2L ready including R32
• Also can be used for transferring SF6 (sulfur hexafluoride) a non-flammable gas used in electrical components.

WHAT'S INCLUDED

• MR45 Refrigerant Recovery Machine

• 10 Extra Mesh Screens for Input Port

• 3 Extra O-ring for Input Port

• Operator’s Manual

SPECIFICATIONS

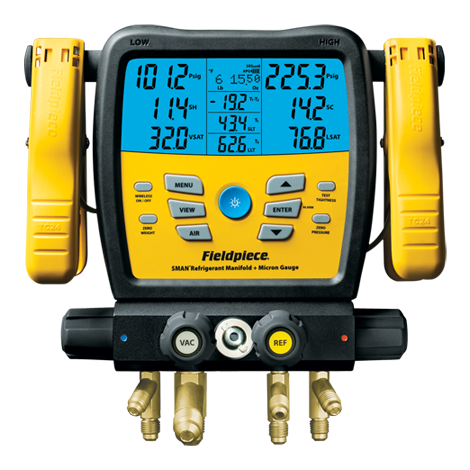

Fieldpiece Wireless 4-Valve Digital Manifold with Micron Gauge - SM480vINT

The newly designed Fieldpiece Manifolds are stronger and more robust than ever before!

Data Logging

• Stores up to 9 jobs internally
• Easy download via USB port
• Displays % free storage space before logging begins
• Logs up to 7 days (168 continuous hours)

Tightness Test built-in feature
• Check for leaks after repairs or installations
• View pressure differential over time
• Timer tracks duration of test
• Temperature compensated with SL temp to avoid false positives

Customisable Menu
• Adjust auto power off duration
• Adjust backlight duration
• Set high and low vacuum alarms
• Select each unit of measurement individually

Receives Wireless Measurements
Add Job Link Tools to your arsenal and get live readings directly on the SMAN manifold screen from the Job Link Psychrometers (JL3RH), Job Link Pipe Clamps (JL3PC), and SRS3 Refrigerant Scale.
Place pipe clamps in the perfect location. Monitor and record live refrigerant usage for precise recovery, charging, and documentation. View live air measurements and calculations while making adjustments.

Increase Professionalism with Job Link® System App
Streamline and simplify your call even further with the Job Link System App. See your measurements up to 100 metres away on your mobile device. Document your work and provide professional reports, including refrigerant weight usage, by simply connecting to the Job Link System app. Helps to reduce call-backs and increase profits.
• View measurements on SMAN and/or in Job Link App
• Monitor and record refrigerant weight
• Direct 100 meter wireless range (no transmitter needed)

WHAT'S INCLUDED

• SM480vINT

• 2 x TC24 Wired Type-K Pipe Clamp thermocouple

• 1 x ATA1 Type-K Bead Thermocouple with clip

• 1 x ANC11 Padded Drawstring Case

SPECIFICATIONS

Fieldpiece Infrared Refrigerant Leak Detector - DR82

Infrared Refrigerant Leak Detector for HVACR - Superior Sensitivity in a Rugged Design for HVACR

• 10-year sensor life
• Doesn’t trigger on soap bubbles and oil
• Compact – designed to fit in your hand
• Multiple alarms
• LED lighted tip and loud beep help find leaks in noisy and dark environments
• Sensitivity better than 0.03 oz/yr (1g/yr)
• Ruggedized and IP54-certified
• 10-hour battery charge
• Bright blue, back-lit LCD screen with clear numerical leak size indicator and bar graph
• Non-conductive, sturdy probe that stays where you want it.
• Weighs less than a pound
• Works on A2L Refrigerants

WHAT'S INCLUDED

• Advanced IR Refrigerant Leak Detector (DR82)

• 5 x Replacement Filtered Tips (RFT6)

• Wall Charger with USB-C Cable (RCA3)

• Blow-Molded Case (ABM2)

• Operator’s Manual

SPECIFICATIONS

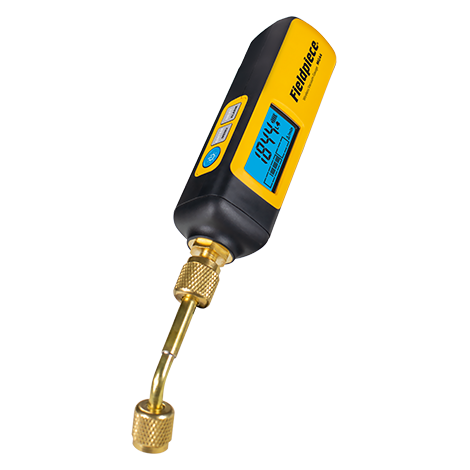

Fieldpiece Wireless Probe Vacuum Gauge with LCD Display - MG44

The NEW MG44 Micron Gauge Impact and Weather Resistant designed for the field

• Confidently perform evacuations with a reliable, leak-proof seal.
• Reversible angled coupler and new cylindrical design are easier to fit into tight spaces.
• There are three ways to use:
• View from up to 300 metres away (line of sight) via the Job Link® mobile app

• View on the Fieldpiece SMAN™ Refrigerant Manifold SM380INT or SM480INT

• View direct from the MG44’s display
• Three ways to view the new larger backlit LCD screen is easier to read and its dot-matrix display shows more info including:
• bar graph

• rate

• rate meter
• IP54-rated weather-resistant.
• Rugged over-molded construction for extreme impact resistance.
• Range 50 to 25,000 microns
• Units of measure: microns (µm) of mercury, mmHg, mbar, mTorr, Torr, and Pascals

WHAT'S INCLUDED

• Micron Vacuum Gauge - MG44

• Reversible Coupler Fitting

• Operator's Manual

• 2 x AA Alkaline Batteries

SPECIFICATIONS

Fieldpiece Wireless Electronic Refrigerant Scale 114KG - SR47

The New Heavyweight Champion

• 13″ platform to fit larger tanks and integrated bumpers for increased durability
• Strong enough to hold a maximum load of 252 lbs
• Wireless remote control with LED backlight – can be stored inside the scale, and makes viewing data easy
• Industry-leading accuracy: ±0.03%rdg + 0.25 oz
• Lightweight. Total weight of scale and remote is ~7 lbs
• Water resistance can handle any job site
• Connects to the Job Link® System App with 1000′ wireless range and Digital Manifolds SM480V & SM380V
• Platform battery lasts 200+ hours – it can literally work all week if needed
• Easy-to-use raised power button now located at base of scale
• A2L compatible

Fieldpiece TRMS Combination Mini Clamp Meter - SC260

Value-packed compact Clamp Meter with True RMS scoped for HVAC-R Testing

• Volts AC/DC
• True RMS
• 400 Amps AC
• Temperature F/C
• Capacitance
• Non-contact voltage
• 40 Mega Ohm with 0.01 resolution
• Continuity
• Diode Test
• Max/Min/Hold
• LCD Backlight
• Low Battery Indicator
• Hi-voltage Warning

WHAT'S INCLUDED

• SC260 Meter

• ADLS2 Deluxe Silicone Lead Set with Gold Plated Tips and Removable Sheath

• ATB1 Wrap Tab Type K Thermocouple

• Velcro Strap

• 9V Battery

• ANC4 Padded Case

SPECIFICATIONS

Display	4000 count
Backlight	5 minute duration with auto-off. Blue color. SC260 only
Overrange	(OL) or (-OL) is displayed
Measurement rate	3 times per second, nominal
Zero	Automatic
Operating environment	32°F to 122°F (0°C to 50°C) at <70% relative humidity
Storage temperature	-4°F to 140°F (-20°C to 60°C), 0 to 80% RH (with battery removed)
Accuracy	Stated accuracy @ 73°F±9°F (23°C±5°C), <75%RH
Temperature coefficient	0.1 x (specified accuracy) per °C [0°C to 19°C (32°F to 66°F), 28°C to 50° C(82°F to 122°F)]
APO (Auto Power Off)	Approx. 30 minutes
Power	9V, NEDA 1604A, IEC 6LR61 9V alkaline battery
Battery life	200 hours typical alkaline (SC220/SC240); 150 hours typical alkaline (SC260)
Low battery indication	Battery icon blinks and “LO.bt” is displayed when the battery voltage drops below the operating level
Dimensions	205.5mm(H) x 67.4mm(W) x 45.1mm(D)
Weight	Approx. 265g including battery
Altitude	Up to 6562 ft (2000m)
Overload protection	600 VDC or 600VAC rms unless otherwise stated
Test leads	Use UL listed test leads that comply to UL61010-031 rated CATIII 600V or above
Included	Test leads are gold- plated and have removeable safety caps

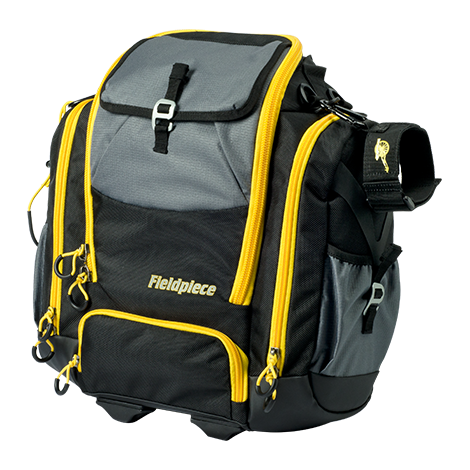

Fieldpiece Tool Bag - BG44

• Rugged, elevated rack for hand tools
• Padded pockets to protect meters
• Magnetic tray
• Quick carry single strap
• Compact rugged design

WHAT'S INCLUDED

• Tool Rack for approximately 11 screw/nut drivers and 8 pliers
• Pockets
  • 4 padded for meters
  • 1 padded for small tablet
  • 8 for shifters
  • 2 for hex key sets
  • 1 front flap misc.
  • 2 side misc.
  • 1 zipped inside
  • 1 zipped bottom bulk
• Accessories
  • 1 drill/driver cinch strap
  • 1 water bottle strap
  • 1 tape loop strap
• Dimensions: 19”h x 14”w x 6”d

WARRANTY

1 Year from Date of Purchase (excludes Consumables such as Filters, Gaskets, Leads, Batteries, Fuses, Sensors, Case etc)

Please operate the instrument following all instructions of the operator's manual to avoid impairing the safety of the product.
