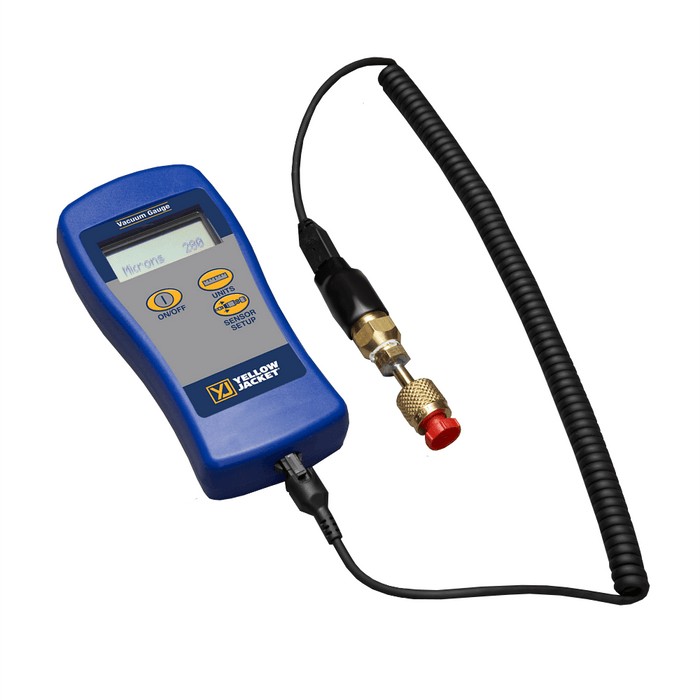

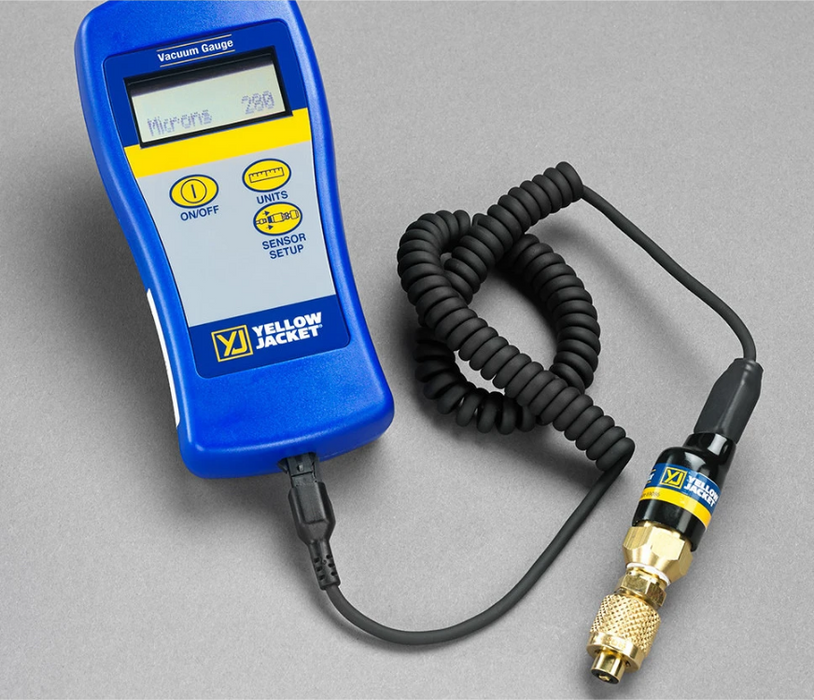

Yellow Jacket 69086 Handheld Vacuum Gauge Kit — NIST Traceable | 10 to 25,000 Micron
The Yellow Jacket 69086 is a handheld vacuum gauge kit designed for HVAC/R technicians who need accurate, field-proven vacuum measurement during system evacuation. It reads from atmosphere down to 10 microns with a bar graph indication above 25,000 microns, and displays vacuum in seven selectable units. Calibration standards are traceable to NIST — useful for technicians working in environments where calibration traceability is required.
A key feature of the 69086 is the replaceable, cleanable plug-in sensor (Part #69087), which handles up to 450 psi positive pressure. If the sensor gets contaminated, you can plug in a new sensor, run a quick calibration, and be back on the job within minutes — without sending the whole gauge for service.
Important: System evacuation and refrigerant handling requires appropriate trade qualifications. Confirm licensing and compliance requirements with the relevant authority in your state or territory before undertaking refrigerant work.
Key Features
- Measuring range: atmosphere to 10 microns (bar graph above 25,000 microns)
- Unique patented thermal conductivity sensor — automatically compensates for temperature
- Replaceable, cleanable plug-in sensor (Part #69087) — handles 450 psi positive pressure
- Seven selectable vacuum units: microns, milliTorr, Torr, mmHg, millibar, kiloPascal, Pascal
- Calibration standards traceable to NIST
- 12" coiled sensor cord — stretches to 24" for reach and flexibility
- Magnetised back for secure, upright positioning on metal surfaces
- Low battery indicator
- Automatic shut-off after 20 minutes
- Accuracy: ±20% of reading
- Operating temperature: 0°C to 50°C
- Battery life: approximately 25 hours continuous
- Power: 9V alkaline battery
- Weight: 392g (with battery)
- Made in the USA
- 12-month manufacturer’s warranty
Best For
- HVAC/R technicians who need a field-replaceable sensor vacuum gauge for ongoing service work
- Technicians working in environments where NIST-traceable calibration is required
- System evacuation on residential and commercial AC and refrigeration systems
Check Before Ordering
- Confirm sensor connection and fitting compatibility with your vacuum pump and system service ports
- Replacement sensor (Part #69087) is available separately — confirm availability at time of purchase
- Accuracy is ±20% of reading — confirm suitability for your specific evacuation requirements
- System evacuation requires appropriate trade qualifications — confirm licensing requirements in your state or territory
- Warranty: 12 months — confirm current terms at time of purchase
Frequently Asked Questions
Can I replace the sensor in the field?
Yes — the 69086 uses a replaceable, cleanable plug-in sensor (Part #69087). If the sensor gets contaminated, plug in a new sensor, run a quick calibration, and continue working. Confirm sensor availability with HVAC Trade Supply at time of purchase.
What vacuum units does the 69086 display?
Seven units: microns, milliTorr, Torr, mmHg, millibar, kiloPascal, and Pascal — selectable with a button press.
What is the warranty?
12-month manufacturer’s warranty. Confirm current terms with HVAC Trade Supply at time of purchase.
Browse our full vacuum gauge range or contact our team for advice.
