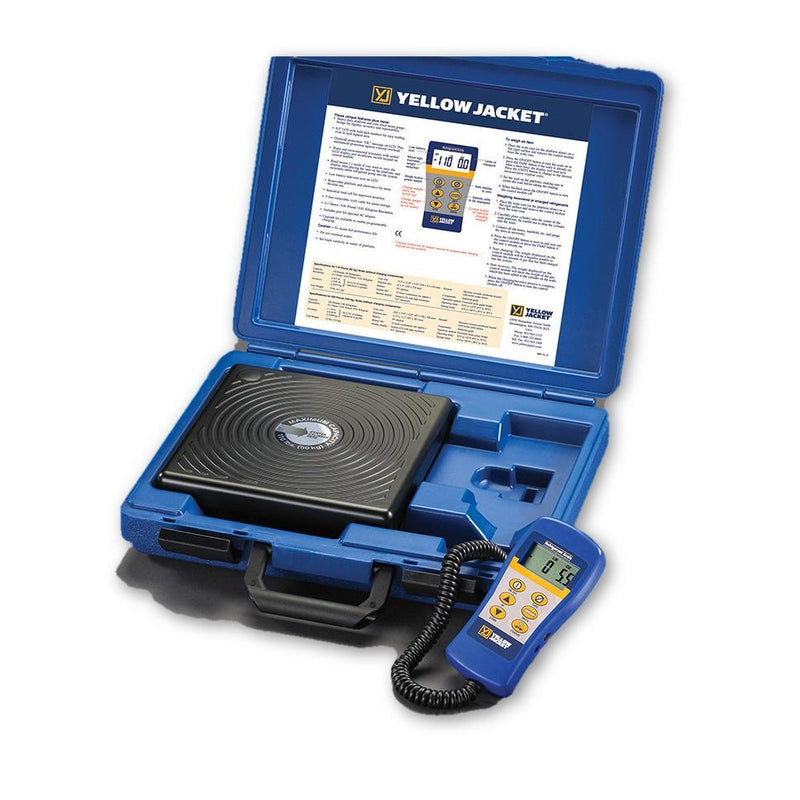

Yellow Jacket 50kg Platform Scale 68800

Eliminates refrigerant transfer from tank to cylinder to the system. The cylinder with refrigerant is weighed before and after charging. Charge directly into the system or recover from the system.

Functions

Digital electronic charging scales show the progress of the charge as it‘s happening, indicating when to close the valves and stop the charge. Works with any refrigerant in any system.

• Calibration standards traceable to NIST
• Removable control module on retractable 5′ coiled cord
• Mechanical overload protection and “OL” alert on LCD
• Industrial-grade circuitry for long-life performance
• Minus (-) reading shows weight removed from the platform
• Single point load cell strain gauge for long-term stability and accuracy

Programmable electronic charging scales have added automated, faster, and more economical charging capabilities.
Program the charging weight; the valve will close automatically when the charge is complete.

• Mesh filter in charging module protects solenoid valve from debris
• Low flow triggers automatic hold to extend solenoid life
• Schrader valve prevents backflow through solenoid
• Charging accuracy is equal to scale accuracy +/- 0.25 oz.
• Solenoid valve with 400 psi maximum operating pressure differential (MOPD) allows a metering broad range of refrigerants
• Made in the USA

Convert standard 68802 and 68800 scales to programmable with upgrade kits 68804 and 68805.
Each kit includes a charging module, power pack, instruction manual, and a larger carrying case to hold all parts.

Specifications

• Capacity: 243 lbs (110 kg)
• Accuracy: ≤±0.05% of reading
• Resolution: 0.05 lb/ 0.5 oz / 0.01 kg
• Automatic Shut Off: 3 hrs
• Operating Temperature: 32 to 120°F (0 to 49°C)
• Battery Life: Approximately 40 hrs
• 22 x 22cm (9 x 9”) Platform

Instructions & Manuals

Yellow Jacket 50kg Platform Scale 68800 Manual
