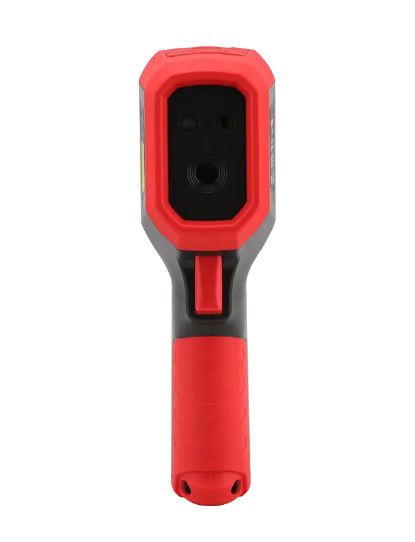

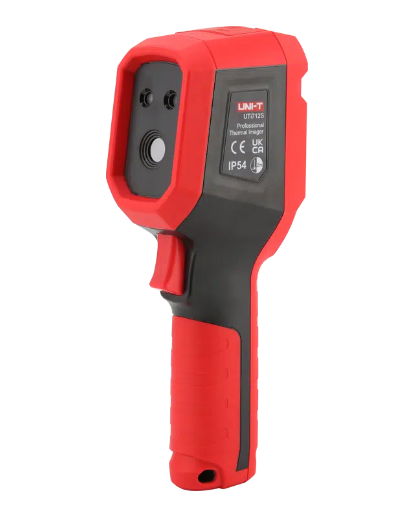

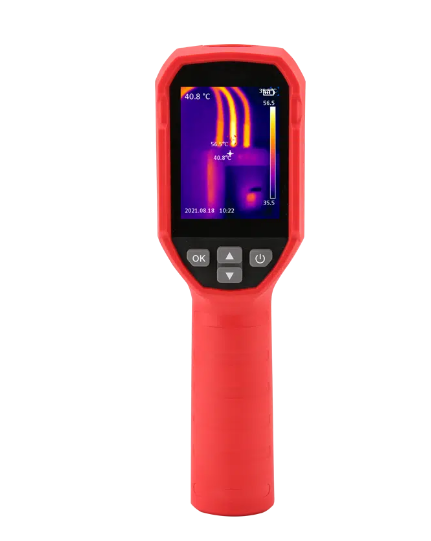

Uni-T UTi712S Value Thermal Camera 320×240 Pixels
Save 6%
Original price
$502.99
Original price
$502.99
-
Original price
$502.99
Original price
$502.99
Current price
$472.99
$472.99
-
$472.99
Current price
$472.99
🔧 Need the Right HVAC Tool for the Job?
Whether you're quoting a bulk order or chasing hard-to-find tools, we’re here to help.
Get a fast, personalised quote—no pressure, no spam!
Fill out the form below and we’ll get back to you ASAP.
Get a fast, personalised quote—no pressure, no spam!
Fill out the form below and we’ll get back to you ASAP.
📩 Request a Quote
UTi712S is a cost-effective and highly recommendable thermal camera with a quality build. Some special features include temperature compensation (allows more accurate readings under different temperature environments), laser pointer, and longer battery operation time (more than 9 hours). This rugged thermal camera has IP54 protection and can withstand 2 meters drop. UTi712S also supports 5 languages: English, German, French, Russian, and Spanish.
FEATURES:
- 4” TFT Screen (320×240 Pixels)
- IR resolution: 120×90
- Temperature measurement range: -20℃ to 400℃ / -4℉ to 752 ℉
- Auto alarm for high/low temperature
- Auto tracking for hot spot/cold spot
- Image capture
- Colour palettes: 6(White hot, Black hot, Ironbow, Rainbow HC, Rainbow, Lava)
- Buzzer alarm
- Laser pointer
- LED flashlight
- PC software analysis
- Rechargeable Li-ion battery

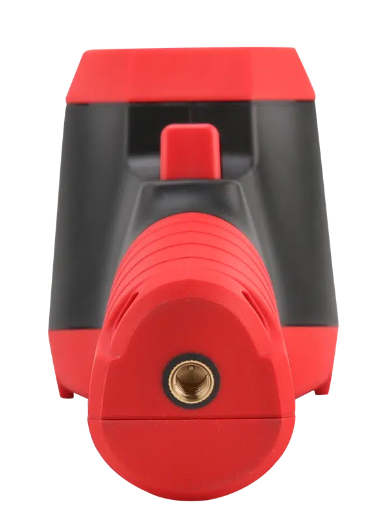

- 1/4” tripod mounting hole
- IP54
- 2m drop proof
INCLUDES:
1 x Ui712S, hand strap, micro SD card, type-C USB cable, English manual and 12-month warranty.
SPECIFICATIONS:
| Technical Data | |
| IR resolution (Pixels) | 120×90 |
| Display | 2.4” TFT LCD (320×240) |
| Field of view(FOV) | 50°×38° |
| Thermal sensitivity(NETD) | ≤60mK |
| Spatial resolution(IFOV) | 7.3mrad |
| Frame rate | ≤25Hz |
| Focus | Focus Free |
| Temperature measurement range | -20℃~400℃ |
| Accuracy | ±2℃ or ±2% whichever is greater |
| Emissivity | 0.01~1.00 adjustable (0.95 default) |
| Functions | |
| Color palettes | 6 (White hot, Black hot, Ironbow, Rainbow HC , Rainbow, Lava) |
| Image modes | Thermal |
| Hi/Lo temperature alarm | Icon,LED flashlight,Buzzer |
| PC software analysis | √ |
| Laser pointer | √ |
| General Characteristics | |
| Battery | Fixed Li-ion battery (3.7V 2600mAh) |
| Battery operation time | ≥8 hours |
| USB | Type-C |
| IP rating | IP54 |
| Drop proof | 2m |
| Storage | 16GB Micro SD card |
| Image/Video storage format | BMP |
| Certificates | CE,UKCA,FCC,RoHS |
| Product net weight | 310g |
| Product size | 197mm×72mm×60mm |
| Packing Details | |
| Standard accessories | Hand strap, Micro SD card, Type-C USB cable, English manual |
| Standard individual packing | Box |
