The UTP3313TFL-II is an economical linear DC power supply with excellent quality and excellent indicators, with intuitive four-bit LED voltage, current display, short circuit overload, reverse polarity protection and other functions. High stability and high reliability.

FEATURES:

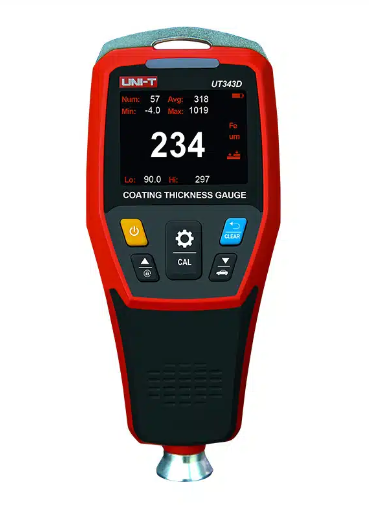

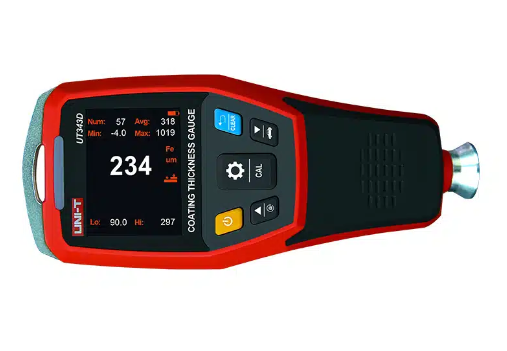

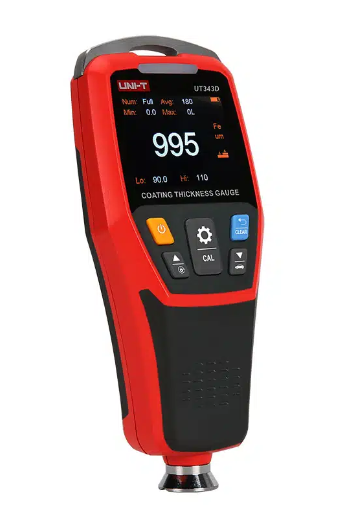

UT343D coating thickness gauge can measure coating thickness on ferrous and non-ferrous materials. This device is designed with a unique quick test feature, which allows users to set thickness range and use a 3-colour LED and audio alarm to quickly determine if the coating being tested falls within the preset range, greatly increasing work efficiency.

UT343 display is auto rotatable. This CE-certified device can store up to 500 sets of data for further analysis through the PC analytical software that is included.

FEATURES:

  • LCD brightness control
  • Auto rotatable screen
  • Unit conversion
  • Audio alarm
  • LED alarm
  • PC analysis software
  • USB communication
  • Quick test mode
  • Auto power off
  • Low battery indication.

INCLUDES:

1 x UT343D and 12-month warranty.

SPECIFICATIONS:

Specifications Range
Measuring range 0~1250um
Accuracy ±(3%H+1)um
Resolution 0.1um (0~99.9um); 1um (100~1250um)
Measurement method Single/Continuous
Measurement mode Max/Min/Avg
Metal type Ferrous/ non-ferrous
Features
Display type 2.0-inches TFT LCD (320 x 240 pixels)
LCD brightness control √
Auto rotatable screen √
Unit conversion √
Audio alarm √
LED alarm √
PC analysis software √
USB communication √
Quick test mode √
Data storage 500 groups
Auto power off √
Low battery indication √
General Characteristics
Power 3V battery (R03) x 2
Display 48mm x 36mm
Product colour Red and grey
Product net weight 175g
Product size 153.5mm x 64.5mm x 41mm
Standard accessories Micro USB interface cable, standard piece, batteries, cloth bag
Standard individual packing Box, English manual
  • UTP3313TFL-II single-channel linear DC power supplies are economical benchtop tools for DIY electronics hobbyists, electronics manufacturing and testing, and other applications.
