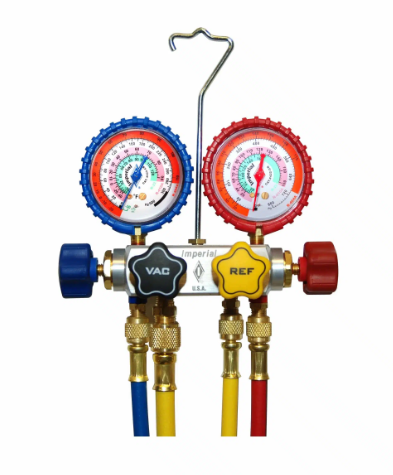

Imperial 847CKPSC 4-Valve Manifold 3 x 5/16 / 1 x 3/8 Hose Set

The 847CKPSC is a 4-Valve premium R410 R32 manifold with 68mm gauges and sight glass supplied with 3 x 150cm x 5/16″ Hoses plus 1 x 60″x 3/8″ vacuum. hose & hose hanger.

4 Times Faster Evacuation – 3/8” vacuum port and oversize internal passages evacuate systems four times faster than ordinary manifolds. The 3/8” port has a greater area than combined inlets of high and low sidelines.

FEATURES:

• 4-Valve Efficiency – Vacuum, low side, high side, and refrigerant lines are individually connected and controlled. No need to switch charging lines.
• 4 Times Faster Evacuation – 3/8” vacuum port and oversize internal passages evacuate systems four times faster than ordinary manifolds.
  • 3/8” port has a greater area than combined inlets of high and low sidelines.
• 5/16″ fittings plus 3/8″ SAE Vacuum Port.
• 3 x 150cm x 5/16″ Hoses plus 1 x 60″x 3/8″ Vac. Hose & Hose Hanger. [ suitable for R32 ]
• Four Valve Silver Anodised Manifold with sight glass [R410a / R32] Celcius, KPA and PSI.

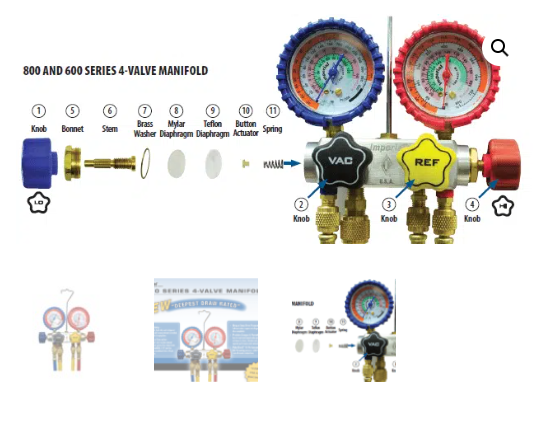

• Unique Deep Draw Vacuum Valve Design – Proven diaphragm-type, soft-seat valves require only fingertip pressure to close completely. One turn to full open/close. Superior for deep vacuum service.
• Precision Gauges & Protective Boots – Unique design with easy to read colour-coded scales provides superior resistance to shock, vibration and pulsation for superior performance and extended gauge life.
• PolarShield® Hi-Performance Hoses – 800 PSI working pressure, 4,000 PSI burst pressure.
• Ergonomic Handles – Durable, soft-touch non-slip surface, even with oily fingers.
• Swivel Hanger.

INCLUDES:

3 x 150cm x 5/16″ Hoses, 1 x 60″x 3/8″ Vacuum Hose, Hose Hanger, and Limited Lifetime Warranty.

SPECIFICATIONS:

• 3 x 150cm x 5/16″ Hoses plus 1 x 60″x 3/8″ Vac. Hose & Hose Hanger. [ suitable for R32/R410 ]
• 5/16″ fittings plus 3/8″ SAE Vac. Port.
• Gauges: R32, R410A, KPa, PSI, Cº
• Bust Pressure: 4000 PSI
• Country of origin: USA.
