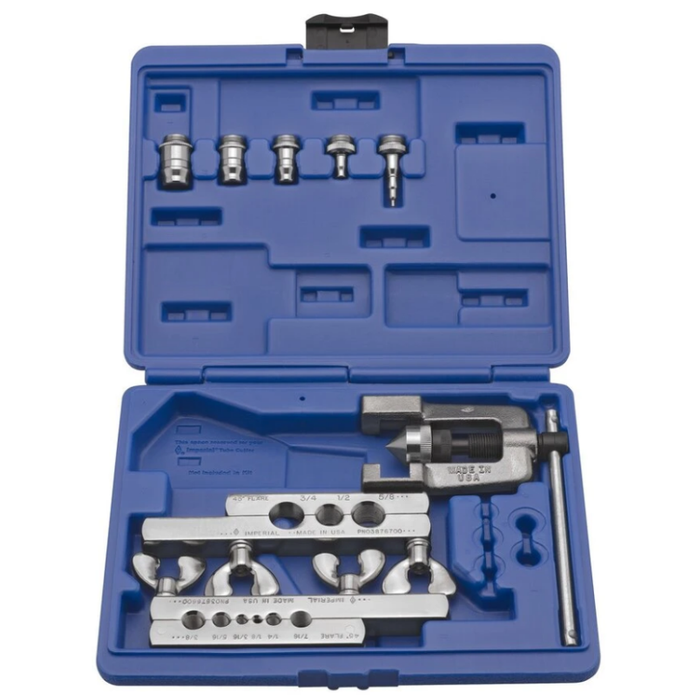

The Imperial 45° Flaring & Swaging Kit (model number 275-FS) is a tool kit that includes tools for both flaring and swaging applications. It is designed to create a precise 45-degree flare on copper, brass, aluminum, and thin-wall steel tubing, as well as perform swaging on soft copper and aluminum tubing. The kit comes with a variety of adapters and a carrying case for easy transportation and storage.
Key Features
- For 1/8” to 3/4” (4 mm to 22 mm) O.D. tubing.
- 275-FS Flares and Swages.
- Converts quickly. Screw-type feed. Ideal for use in close quarters. Two bars included cover 9 sizes.
- Swivel-type swaging adapters and flaring cone are hardened steel, chrome finished for easy operation.
- Self-centering, slip-on forged steel yoke. Includes tool case. Wt. 3kgs
- Flares 1/8”, 3/16”, 1/4”, 5/16”, 3/8”, 7/16”, 1/2”, 5/8” and 3/4” O.D.
What's included
Includes 5 swage adapters for 7 tube sizes: 3/16”, 1/4”, 5/16”, 3/8”, 1/2”, 5/8”, 3/4” O.D. Tube.
| SKU | 275-FS |
| Brand | Imperial |
| Shipping Weight | 3.0000kg |
| Shipping Width | 0.300m |
| Shipping Height | 0.050m |
| Shipping Length | 0.200m |
| Shipping Cubic | 0.003000m3 |
| Unit Of Measure | ea |
| Assembled Length | 0.200m |
| Assembled Height | 0.050m |
| Assembled Width | 0.300m |
