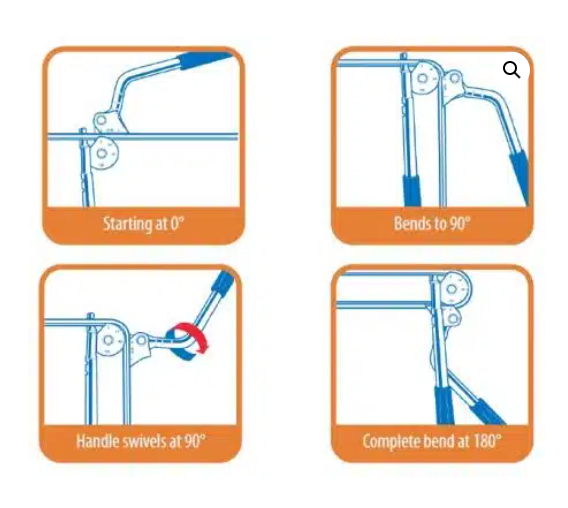

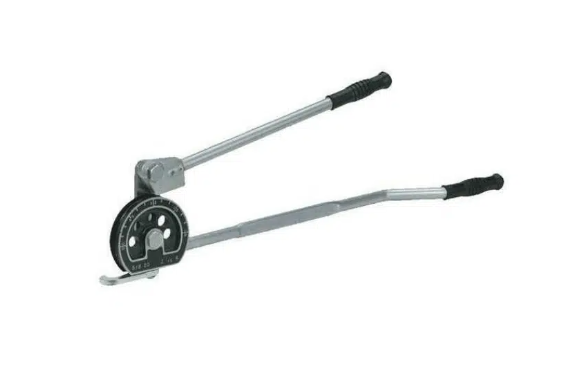

The 364-FHAM series has an Open-side that slips over the tube at any point. Makes smooth, tight radius bends up to 180° with minimum effort. No scoring or flattening of tubing. Calibrated to show the angle of bend.
FEATURES:
- Calibrated to show the angle of bend
- Each tool bends one size
- Makes smooth tight radius bends up to 180° with minimum effort
- No scoring or flattening of tubing
- Open side type which slips over tube at any point
- Wide hook grips tubing securely
SPECIFICATIONS:
|
PART NO.
|
TUBE O.D
(mm) |
RADIUS TO CENTER OF TUBE
(mm) (Inches) |
WEIGHT EACH
(Kg) (lbs.) |
||
| IMP-364FHAM6MM
|
6 | 14.2 | 9/16 | 0.45 | 1.0 |
| IMP-364FHAM8MM
|
8 | 17.5 | 11/16 | 0.45 | 1.0 |
| IMP-364FHAM10MM
|
10 | 24.0 | 15/16 | 0.79 | 1.75 |
| IMP-364FHAM12MM
|
12 | 38.1 | 1-1/2 | 1.6 | 3.5 |
