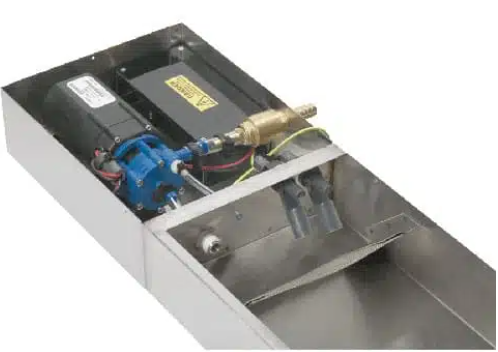

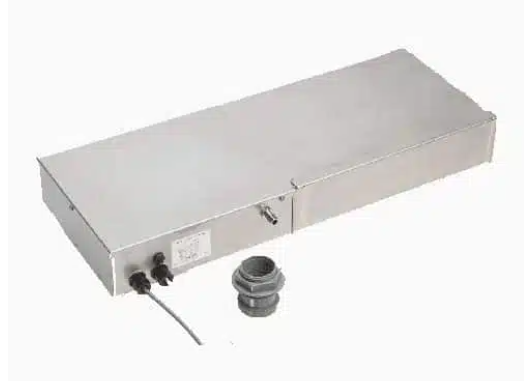

The market-leading British-made Pump House dairy cabinet range or fondly referred to as βVincentβ offers an unrivaled solution to supermarket refrigeration. With a height of only 76mm this stainless steel, easy-to-service pump delivers a complete solution. Ideal for supermarket refrigeration cabinets. Can deal with an intermittent water temperature of up to 120ΛF / 49ΛC.
The DiversiTech DCP30A Standard Dairy Cabinet Pump is a small, compact condensate pump designed to remove water from refrigeration equipment, such as dairy cases, coolers, and freezers. It is typically used in commercial settings, such as grocery stores, convenience stores, and restaurants.
The DCP30A is designed to be mounted directly inside the refrigeration equipment, and it is capable of pumping water up to a height of 30 feet. It includes a built-in overflow switch that shuts off the equipment if the pump fails or if the water level in the reservoir gets too high. This helps to prevent water damage to the surrounding area.
FEATURES:
- Only 76mm high β fits under even the lowest display cabinet
- Barbed hose tail β for easy connection of 1/2β³ drain hose
- Multiple inlet options (top, end, or side) β’ Power and alarm cables pre-fitted
- High discharge head and flow rate β suitable for most applications
- Ideal for cold produce display cabinets in supermarkets and convenience stores
- IP 44-rated sealed electric box
- One-year warranty.
INCLUDES:
1 x Dairy cabinet pump and 12-Month warranty.
SPECIFICATIONS:
- Maximum discharge lift: 700 LPM
- Tank capacity 5.5 Litres
- Outlet 1/2β³
- High-level alarm: 30mm
- Connection Type: Stripped Wire / Hardwired
