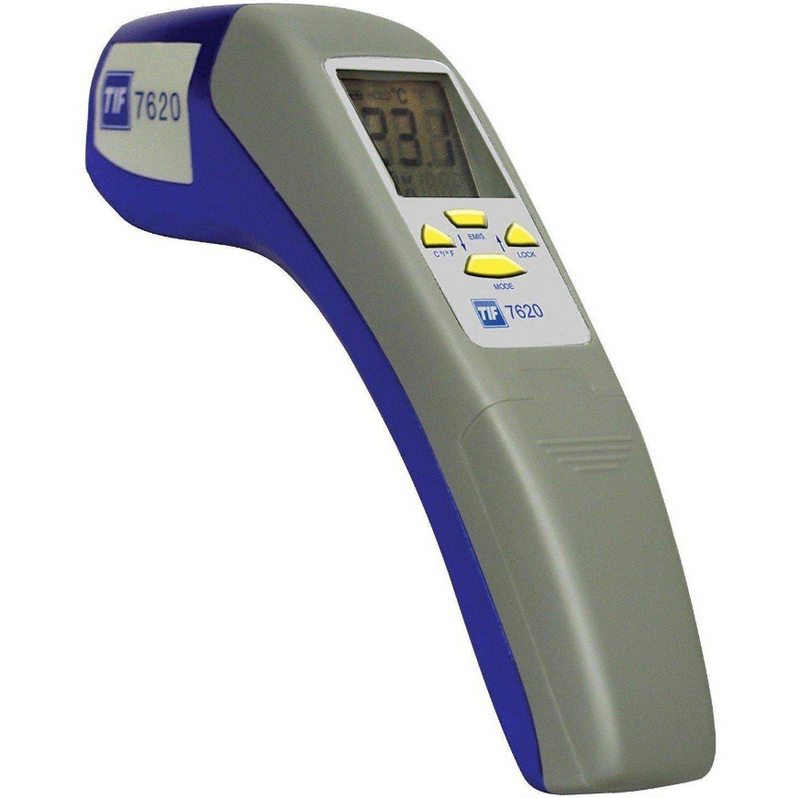

Robinair TIF7620 Infrared Thermometer — 20:1 Optics | MAX/MIN/DIF/AVG | HVAC/R
The Robinair TIF7620 is a non-contact infrared thermometer designed for HVAC/R technicians who need fast, accurate surface temperature measurement over a range of distances. The 20:1 distance-to-spot ratio allows precise measurement of smaller targets from a greater distance compared to 8:1 or 12:1 instruments, making it suited to applications where you need to measure from further away or target a specific component in a crowded panel or plant room.
The TIF7620 includes MAX, MIN, DIF (difference), and AVG (average) temperature modes, plus high and low pass filters with audible alarms for out-of-range measurements. The complete IR design on a single chip keeps the unit compact and lightweight.
Confirm all specifications — including measurement range, accuracy, and emissivity settings — against the Robinair TIF7620 manufacturer’s current datasheet before ordering.
Key Features
- Non-contact infrared surface temperature measurement
- 20:1 distance-to-spot ratio — precise measurement from greater distances
- Complete IR design on a single chip — compact and lightweight
- MAX, MIN, DIF, and AVG temperature modes
- High and low pass filters with audible alarms for out-of-range measurements
- Visual low battery indicator
- Battery: 2 x AAA (included)
TIF7610 vs TIF7612 vs TIF7620 — Which Robinair IR Thermometer?
- TIF7610 ($144.95): Entry-level. 20:1 optics, MAX/MIN/DIF/AVG, alarms. Core IR thermometer features.
- TIF7612 ($198.95): Mid-range. 20:1 optics, MAX/MIN/DIF/AVG, alarms, backlit display, adjustable emissivity.
- TIF7620 ($282.95): Top of range. Confirm additional features vs TIF7612 against the Robinair datasheet before ordering.
Best For
- HVAC/R technicians measuring surface temperatures on AC components, electrical panels, and plant equipment
- Applications requiring 20:1 optics for measurement from greater distances
- Technicians who need MAX/MIN/DIF/AVG modes and alarm functionality
Check Before Ordering
- Confirm measurement range, accuracy, and emissivity settings against the Robinair TIF7620 datasheet
- Confirm the 20:1 optics ratio is suitable for your measurement distance and target size
- Confirm warranty terms with HVAC Trade Supply at time of purchase
Frequently Asked Questions
What does 20:1 optics mean?
A 20:1 distance-to-spot ratio means the instrument measures a spot 1 unit in diameter at a distance of 20 units — for example, a 25mm spot at 500mm distance. This allows accurate measurement of smaller targets from a greater distance than 8:1 or 12:1 instruments.
What is the warranty?
Confirm current warranty terms with HVAC Trade Supply at time of purchase.
