The compact heating set with the testo 115i clamp thermometer, the testo 510i differential pressure measuring instrument, and the testo 805i infrared thermometer are ideal for important measuring tasks heating engineers perform.
Specifications
The testo VAC Smart Probe Set combines four instruments to test and balance a multi-outlet ventilation system. Two types of anemometers allow you to measure in-duct air flow and the flow from each vent. An IR temperature probe for surface temperatures will show motor and electrical equipment conditions and an easy check of each outlet. The thermohygrometer will assess the humidity and dewpoint concerns throughout the system.
Key Features:
- All necessary measuring instruments in a handy bag
- Check measured data wireless on a mobile device
- Data log and plot data graphically and in excel spreadsheet format on a mobile device
- Send measured value report in .pdf or excel file format via email
The Advantages Of The Heating Set
All heating system temperatures and pressures can be measured and checked in conjunction with your Smartphone or Tablet. The handy testo Smart Case provides optimum protection for the measuring instruments and means that they are always to hand when needed.
It allows you to remotely read measurements from up to six (6) Smart Probes and easily document/report the results
Advantages And Applications Of The Individual Measuring Instruments
Testo 115i clamp thermometer
- Particularly practical for temperature measurements at widely spaced measuring points
- Measurement of the flow and return temperature
- testo 510i differential pressure measuring instrument
- Measurement of the differential pressure, as well as the gas flow pressure and static pressure
- Pressure drop test
- Measurement of the airflow velocity
- Measurement of volume flow
- testo 805i infrared thermometer
- Laser circle to mark a measuring spot
- Non-contact measurement of surface temperatures
Practical App With Special Functions For Measurement Data Analysis On Your Smartphone Or Tablet
Measurement data is transmitted wirelessly from the relevant measuring instrument to the Smart Tools App and can be viewed conveniently on mobile terminal devices – either as a chart or in table form. The App offers practical functions such as timed and multi-point mean calculation, volume flow configuration, or a pressure drop test. The measurement data log can be emailed as a PDF or Excel file. This saves you time, allowing you to increase your efficiency further.
System requirements:
- iOS 8.3 or later
- Android 4.3 or later
- Bluetooth 4.0

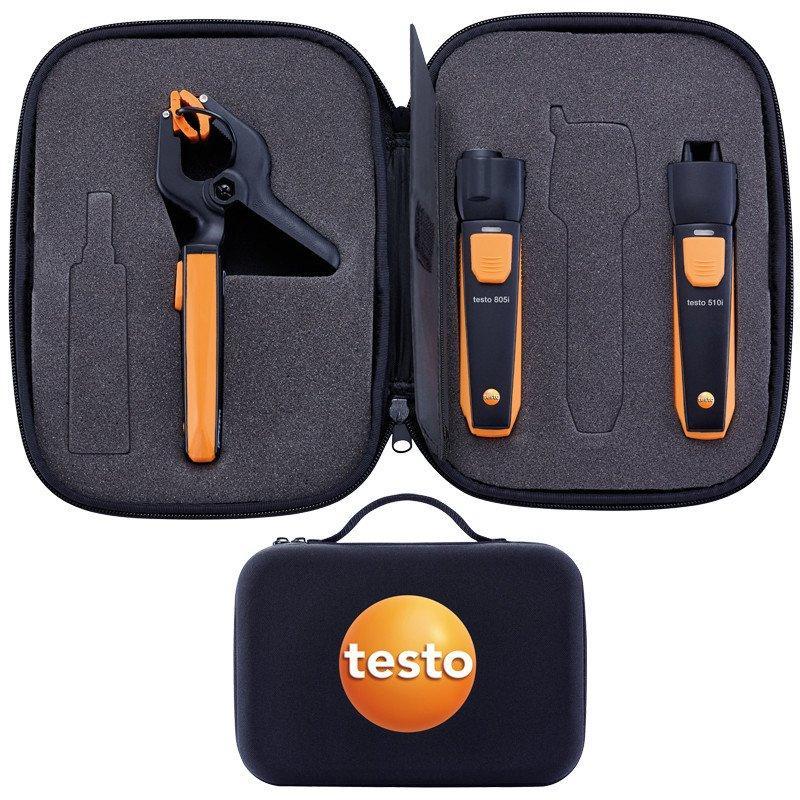

What's Included:
- testo 115i
- testo 510i incl. hose set (Ø 4 mm and 5 mm) with adapter
- testo 805i, testo Smart Case (heating)
- batteries & calibration protocol.
Warranty
2 years
Instruction Manuals & FAQ
Smart Probes - Refrigeration Set Manual
