Yellow Jacket 7CFM Bullet X Vacuum Pump 93620
Sold out
Original price
$566.95
Original price
$566.95
-
Original price
$566.95
Original price
$566.95
Current price
$452.95
$452.95
-
$452.95
Current price
$452.95
🔧 Need the Right HVAC Tool for the Job?
Whether you're quoting a bulk order or chasing hard-to-find tools, we’re here to help.
Get a fast, personalised quote—no pressure, no spam!
Fill out the form below and we’ll get back to you ASAP.
Get a fast, personalised quote—no pressure, no spam!
Fill out the form below and we’ll get back to you ASAP.
📩 Request a Quote
DESCRIPTION

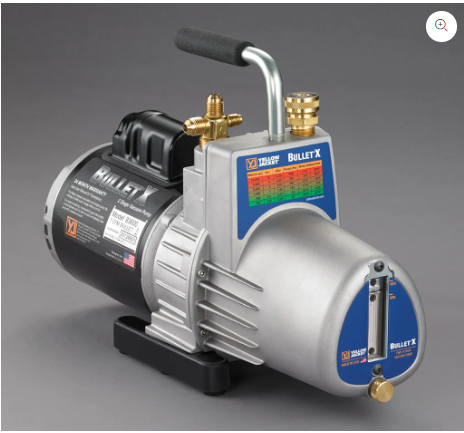

93620 Yellow Jacket 7CFM Bullet X Vac Pump (165L/M)
Wide mouth oil reservoir port for easier, cleaner filling. The YELLOW JACKET® BULLET™ vacuum pump is a two-stage rotary vane oil-sealed 7 CFM pump that pulls down to 25 microns or better.
FEATURES
- Wide mouth oil reservoir port for easier, cleaner filling. Doubles as pump exhaust; threaded to attach garden hose for exhausting to remote location
- Large oil sight glass for easy monitoring of oil level
- Large brass oil drain for easy access to fast oil changes
- Internal intake check valve prevents oil backup into the system during a power failure
- Intake filter screen keeps damaging particles from entering the pump
- Heavy-duty rotors and bearings
- Heavy-duty steel handle for well-balanced carrying
- Tethered port caps stay with the pump
- Stable base; wide-stance metal with rubber overlay
- 24-month limited over-the-counter warranty
- Made in the USA
SPECIFICATIONS
| Free Air Displacement | 7CFM (165 L/M) |
| Number of Stages | Two-stage rotary vane |
| Field Blankoff | 25 microns |
| Intake | 1/4" x 3/8" x 3/8" |
| Motor | 1/2” hp – 1725 rpm |
| Thermal Overload Protection | Yes |
| Voltage (single phase) | 115V/60 Hz |
| Power Cord | 6' - motor mounted switch |
| Oil Capacity | 7 CFM (28oz./0.828L) |
| Dimensions | 17.5" L x 6" W x 12" H (44.5 cm x 15.2 cm x 30.5 cm) |
| Weight | 31.7 lbs. (14.4 kg) |
Additional specifications for EU/UK 93610; AU/NZ 93620
| Detachable ICE cord type | EU/UK; AU/NZ |
| Free air displacement | 200/165 L/M |
| Motor | 1/2 hp - 1725/1425 rpm |
| Dual voltage (single phase) | 115/230V/50-60 Hz |
| Dimensions | 18" L x 6" W x 12" H (45.7 cm x 15.2 cm x 30.5 cm) |
| Weight | 34.5 lbs. (15.7 kg) |
WHAT'S INCLUDED
- 1 x Yellow Jacket Bullet X Vac Pump 7CFM 93620
