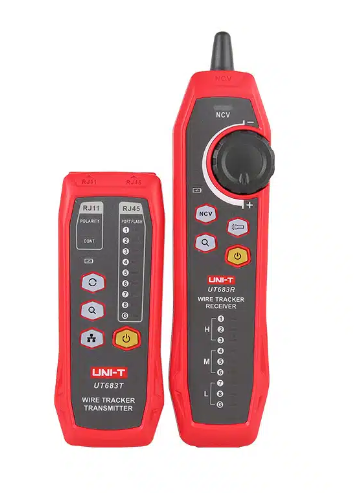

The UT683KIT is an intelligent wire tracker which consists of the transmitter and receiver, this kit is designed with strong anti-interference ability. The receiver can quickly and accurately locate the target cable. This kit can automatically identify open, short, polarity, and quickly distinguish cable failure.
FEATURES:
- Line function
- NCV function
- Withstand voltage DC 60V
- Port flashes.
INCLUDES:
1 x UT683KIT and 12-month warranty.
SPECIFICATIONS:
| Specifications | Description |
| Certificates | CE, RoHS |
| Transmitter | |
| Port flashing | √ |
| Wire tracking | √ |
| Line alignment | √ |
| Open-short test | 10kΩ |
| Polarity test | √ |
| Operating time | ＞8 hours |
| Receiver | |
| Wire tracking | RJ11＞3000m; RJ45＞100m |
| NCV function | √ |
| Headset jack | 3.5mm |
| Low battery indication | √ |
| Operating time | ＞5 hours |
| General Characteristics | |
| Power | 1050mAh rechargeable lithium battery |
| Product net weight | Transmitter: around 95g; Receiver: around 127g |
| Product size | Transmitter-130mm x 51mm x 28mm; Receiver-197mm x 48mm x 34mm |
| Standard accessories | USB cable, RJ11 aligator clip test cable, RJ45 test cable, RJ11 test cable, English manual |
| Standard individual packing | Box, carrying bag |
