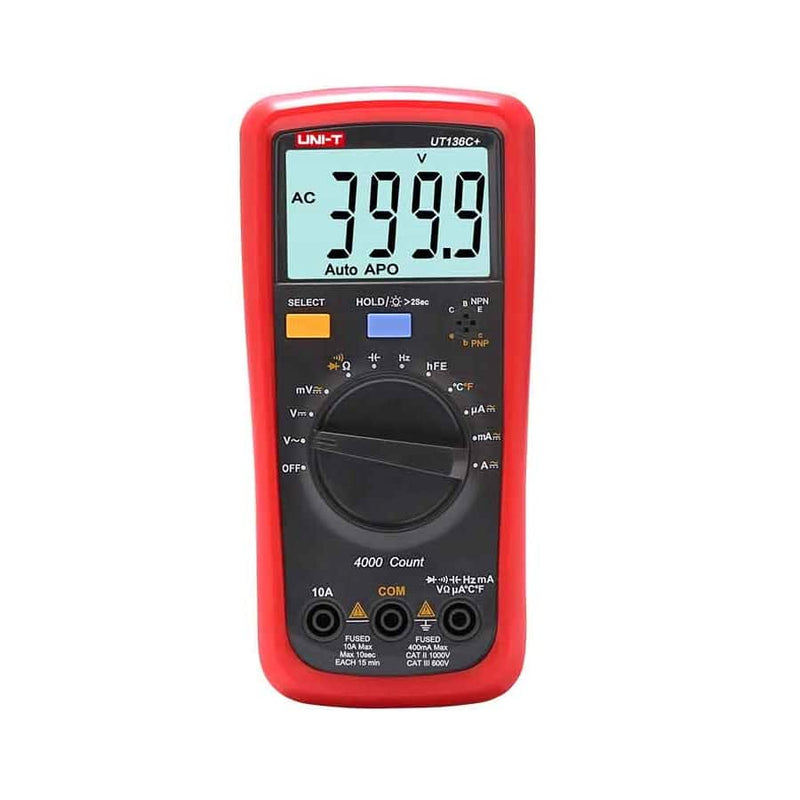

Uni-T UT136C+ Digital Multimeter
Save 26%
Original price
$83.95
Original price
$83.95
-
Original price
$83.95
Original price
$83.95
Current price
$61.95
$61.95
-
$61.95
Current price
$61.95
🔧 Need the Right HVAC Tool for the Job?
Whether you're quoting a bulk order or chasing hard-to-find tools, we’re here to help.
Get a fast, personalised quote—no pressure, no spam!
Fill out the form below and we’ll get back to you ASAP.
Get a fast, personalised quote—no pressure, no spam!
Fill out the form below and we’ll get back to you ASAP.
📩 Request a Quote
The new generation of UT136+ series digital multimeter has an innovative industrial design that ensures that the product can withstand a drop of 2 meters in height. A large LCD screen provides a clear display, and its four times/second sampling rate offers users more accurate readings. UT136+ series is designed to work safely in CAT II1000V/CAT III 600V environment.
FEATURES:
- Measures up to 1000V and 10A AC/DC voltage and current
- Equipped with 3mm protective sleeve; 2 meters drop proof
- Large LCD; Overload alarm
- Quick sampling rate, up to 4 times/s
- Quick capacitor measurement (measures 1mF in 4 seconds)
- Low power consumption and auto power-saving function; long battery service life (>500hrs).
INCLUDES:
- 1 x 136C, batteries, test leads, temperature probe, 1 x English user manual and 12-month warranty.
SPECIFICATIONS:
| Specifications | Range | UT136C+ |
| DC voltage (V) | 1000V | ±(0.7%+3) |
| AC voltage (V) | 1000V | ±(1%+3) |
| DC current (A) | 10A | ±(1%+3) |
| AC current (A) | 10A | ±(1.2%+5) |
| Resistance (Ω) | 40MΩ | ±(0.8%+2) |
| Capacitance (F) | 40mF | ±(3%+5) |
| Frequency (Hz) | 400Hz~40mHz | ±(0.1%+4) |
| Temperature (°C) | -40~1000℃ | ±(1%+4) |
| Temperature (℉) | -40~1832℉ | ±(1.5%+5) |
| Features | ||
| Display count | 4000 | |
| hFE | Transistor measurement | √ |
| Diode/transistor | √ | |
| Continuity buzzer | √ | |
| Data hold/auto power-off | √ | |
| Low battery/Indication | √ | |
| LCD backlight | √ | |
| Safety rating | CAT Ⅱ 1000V, CAT Ⅲ 600V | √ |
| Drop test | 2m | √ |
| General Characteristics | ||
| Power | 1.5V battery (R6) x 2 | |
| Display | 56.5mm x 36mm | |
| Product colour | Red and grey | |
| Product net weight | 330g | |
| Product size | 175mm x 83mm x 53mm | |
| Standard accessories | Batteries, test leads, temperature probe | |
| Standard individual packing | Box, English manualUni-T | |
