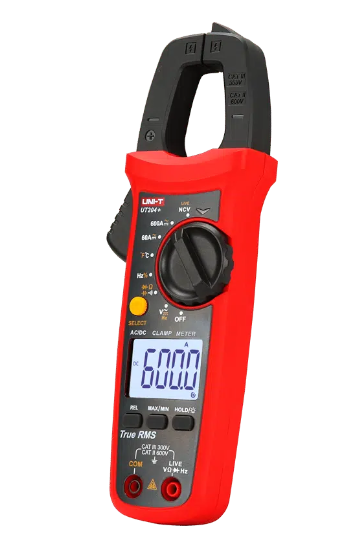

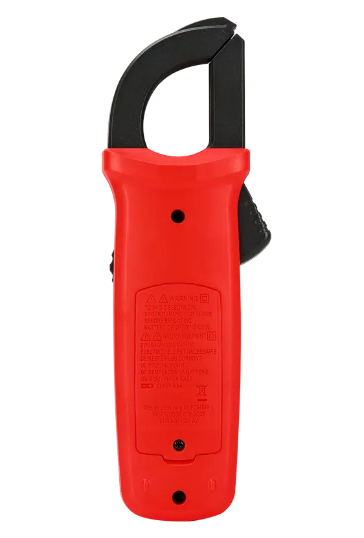

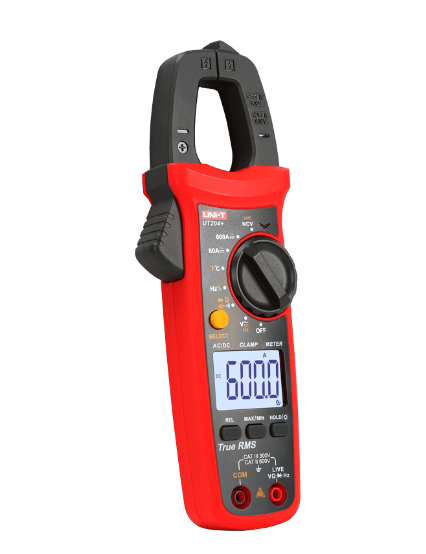

Uni-T UT204+ AC/DC Digital Clamp Meter

Name: HVAC Trade Supply
Address: Pillapai St, Charlestown, NSW, 2290, AU
Telephone: +61412333115
Price range: $$

Save 28%

$166.95

$166.95 - $166.95

$166.95

$119.99

$119.99 - $119.99

$119.99

Quantity

🔧 Need the Right HVAC Tool for the Job? Whether you're quoting a bulk order or chasing hard-to-find tools, we’re here to help.

Get a fast, personalised quote—no pressure, no spam!
Fill out the form below and we’ll get back to you ASAP.

📩 Request a Quote

Features:

CAT IV 600V rating
True RMS
Jaw opening: 28mm
Large LCD 6000 Count display
Non-Contact Voltage (NCV) detection
Continuity and Diode testing
MAX/MIN measurement
Data hold function
Temperature measurement range: -40℃ to 1000℃
12-month warranty

Includes:

1 x UT204+ clamp meter
Test leads
Batteries
Carrying bag
Thermocouple
12-month warranty

Specifications:

Specifications	Range	UT202+	UT204+
AC current (A)	400A	±(2%+10)
	600A		±(2.5%+5)
AC current frequency (Hz)	50Hz~100Hz	±(1%+5)
DC current (A)	400A
	600A		±(2.5%+5)
AC voltage (V)	600V	±(0.8%+5)	±(0.8%+5)
AC voltage frequency (Hz)	10Hz~10kHz	±(1%+5)
	10Hz~60kHz		±(0.5%+2)
DC voltage (V)	600V	±(0.5%+2)	±(0.5%+2)
Resistance (Ω)	40MΩ	±(0.8%+2)
	60MΩ		±(0.8%+2)
Capacitance (F)	4mF	±(4%+5)
	40mF
	60mF		±(4%+5)
Temperature (℃)	-40℃~1000℃	±(1.5%+5)	±(1.5%+5)
Frequency (Hz)	10Hz~10MHz		±(0.1%+4)

Features Comparison:

Features	UT202+	UT204+
Display count	4000	6000
Auto range	✓	✓
Jaw opening	28mm	28mm
True RMS	✓	✓
NCV	✓	✓
Live wire test		✓
Continuity test	✓	✓
Diode	✓	✓
MAX/MIN	✓	✓
Relative mode	✓	✓
Zero mode		✓
Data hold	✓	✓
Low battery indication	✓	✓
Auto power off	✓	✓

General Characteristics:

Power: AAA (Ro3) x 2
Display size: 37mm x 25mm
Product color: Red and grey
Product net weight: UT202+: 248g; UT204+: 235g
Product size: 215mm x 63mm x 36mm
Standard accessories: Batteries, test leads, Thermocouple (UT202+/UT204+)
Standard individual packing: Box, Carrying bag, English manual
