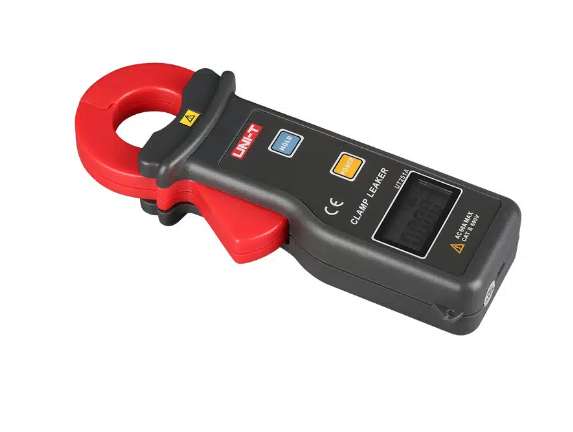

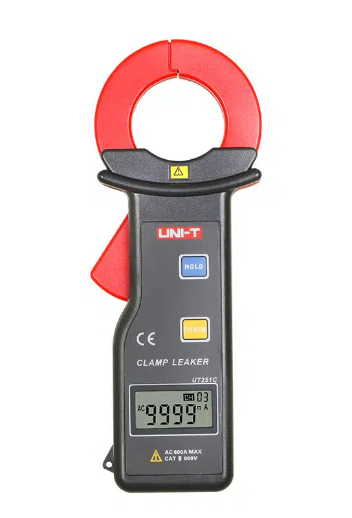

Uni-T 251C Leakage Current Clamp Meter
Save 15%
Original price
$329.99
Original price
$329.99
-
Original price
$329.99
Original price
$329.99
Current price
$279.99
$279.99
-
$279.99
Current price
$279.99
🔧 Need the Right HVAC Tool for the Job?
Whether you're quoting a bulk order or chasing hard-to-find tools, we’re here to help.
Get a fast, personalised quote—no pressure, no spam!
Fill out the form below and we’ll get back to you ASAP.
Get a fast, personalised quote—no pressure, no spam!
Fill out the form below and we’ll get back to you ASAP.
📩 Request a Quote
UT251 series high-accuracy high sensitivity leakage current clamp meters are designed for testing AC leakage current. These high-resolution meters are great for applications such as checking leakage current for motors, home appliances and other electrical equipment up to 600A.
FEATURES:
- 4-digit LCD digital display, 10000 display count
- Auto range, 2/s sampling rate
- Peaks hold
- Store 99 sets of data
- RS-232 interface
- Data hold
- Auto power off
- Overload indication, low battery indication.
INCLUDES:
1 x Leakage current clamp meter, 1 x English manual and 12-month warranty.
SPECIFICATIONS:
| Specifications | Range | UT251C |
| Leakage current (A) | 0.001mA～60A | ±(1.5%+5) |
| 60A～199.9A | ±(2%+5) | |
| 200A～300A | ±(3%+5) | |
| 300A～600A | ±(4%+5) | |
| Voltage (Freq.) 0V~600V (50Hz/60Hz) | √ | |
| Resolution | 1mA | |
| Features | ||
| Display | 4 digits LCD | √ |
| Clamp size | 35mm x 40mm | |
| Auto range | √ | |
| RS-232 | √ | |
| Data storage | 99 | |
| Peak/Data hold | √ | |
| Overload protection | OL | √ |
| Auto power off | 5 minutes | √ |
| Low battery indication | ≤7.2V | |
| Over-range display | OL | √ |
| Test mode | Clamp CT, integral mode | √ |
| General Characteristics | ||
| Power | 9V battery (6F22) | |
| Display | 32mm x 15mm | |
| Product colour | Red and grey | |
| Product net weight | 120g | |
| Product size | 175mm x 70mm x 38mm | |
| Standard accessories | Battery, RS-232 interface cable, PC software CD | |
| Standard individual packing | Box, carrying bag, English manual, toolbox | |
