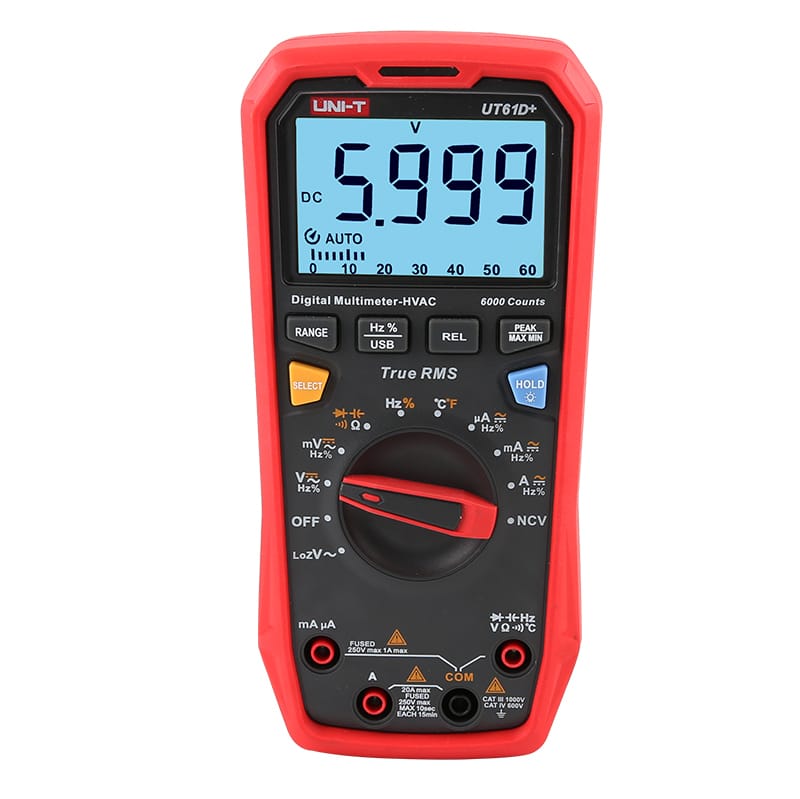

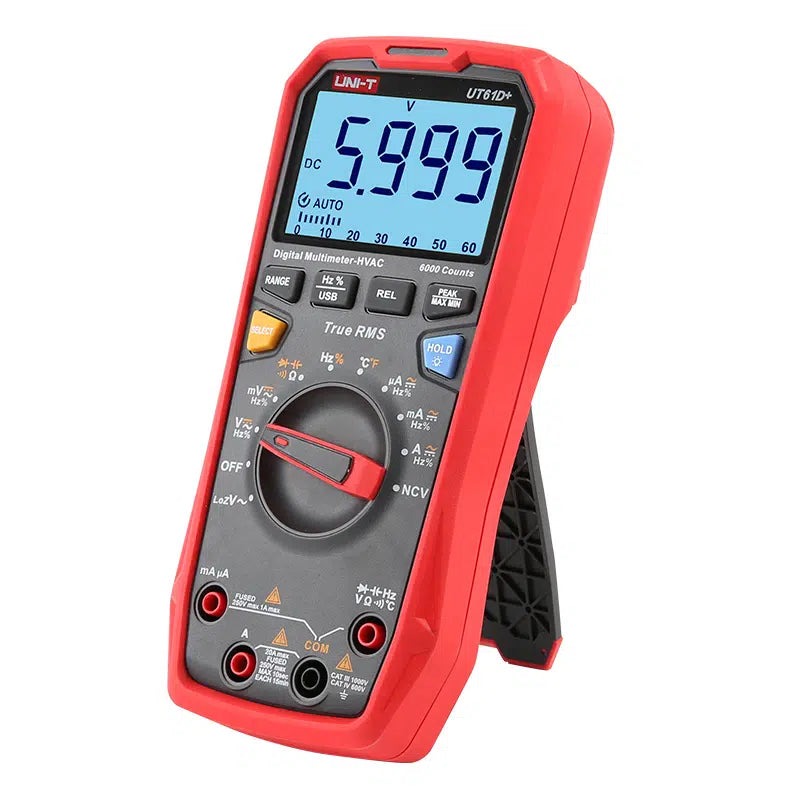

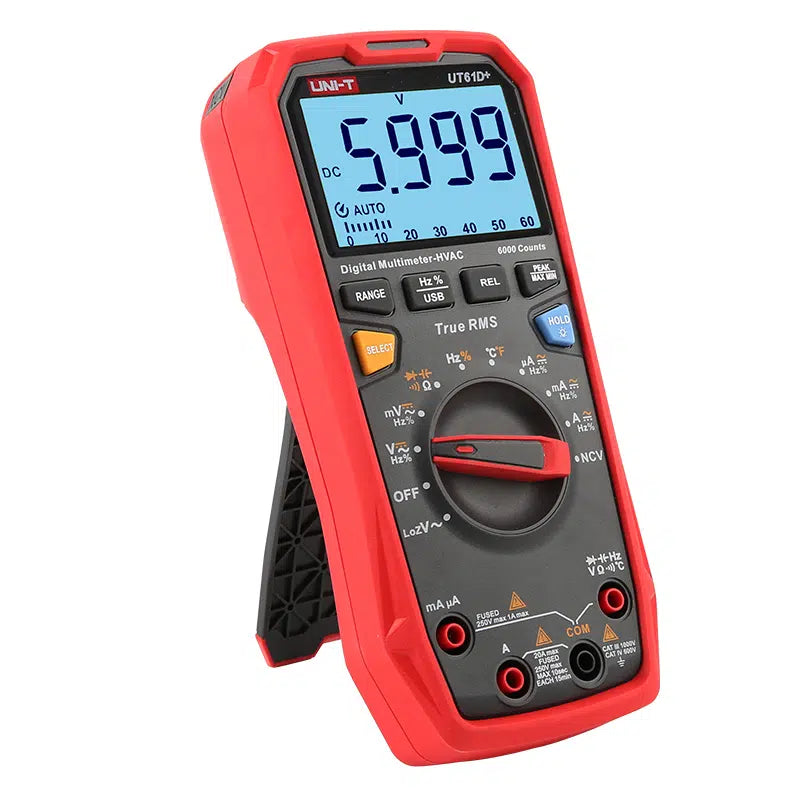

Uni-T UT61D+ 1000V True RMS Digital Multimeter
Sold out
Original price
$161.95
Original price
$161.95
-
Original price
$161.95
Original price
$161.95
Current price
$139.99
$139.99
-
$139.99
Current price
$139.99
🔧 Need the Right HVAC Tool for the Job?
Whether you're quoting a bulk order or chasing hard-to-find tools, we’re here to help.
Get a fast, personalised quote—no pressure, no spam!
Fill out the form below and we’ll get back to you ASAP.
Get a fast, personalised quote—no pressure, no spam!
Fill out the form below and we’ll get back to you ASAP.
📩 Request a Quote
UT61+ series are reliable true RMS digital multimeters with display counts of 6000 (UT61B+/D+) and 22,000 (UT61E+). It can measure up to 1000V AC/DC.
Equipped with audible and visible alarms, this series can provide warning, especially when measuring high voltage/current and temperature.
FEATURES:
- CAT III 1000V/CAT IV 600V

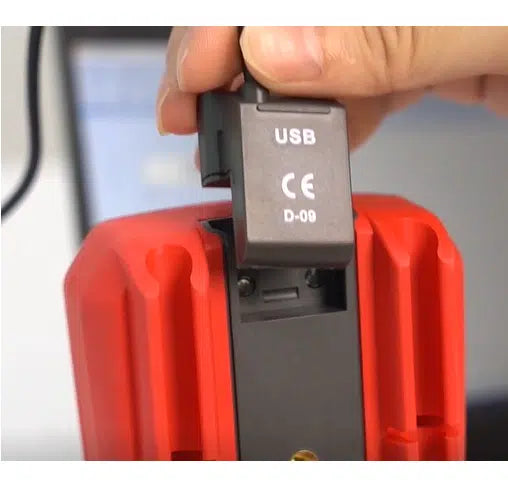

- USB communication
- True RMS
- Data hold/backlight
- Max/Min/Relative mode
- Auto range
- Input protection
- Diode/continuity test
- NCV (audible/visual alarm)
- Analog bar graph (31)
- LoZ ACV
- Temperature -40℃~1000℃
- Peak hold.
INCLUDES:
- 1 x UT61D+, Battery, gold plated test leads, USB cable, temperature probe, 1 x English user manual, and 12-month warranty.
SPECIFICATIONS:
| Specifications | Range | UT61D+ |
| Safety ratings | CAT III 1000V/CAT IV 600V | |
| AC voltage (V) | 1000V | ±(1%＋3) |
| DC voltage (V) | 1000V | ±(0.5%＋3) |
| AC (A) | 20A | ±(1.2%＋5) |
| DC (A) | 20A | ±(1%＋2) |
| Resistance (Ω) | 60MΩ | ±(1%＋2) |
| Capacitance (F) | 60mF | ±(3%＋5) |
| Frequency (Hz) | 10MHz | ±(0.1%＋4) |
| Duty cycle (%) | 0.1%~99.9% | ±(2%＋5) |
| Temperature (℃/℉) | -40℃~1000℃ | ±(1%＋3) |
| -40℉~1832℉ | ±(1%＋6) | |
| Display count | 6000 | |
| Bandwidth (Hz) | 40Hz~1kHz | |
| LoZ ACV | √ | |
| Peak Hold | √ | |
| Analog bar | 31 | |
| General Characteristics | ||
| Power | AAA battery (R03) x 4 | |
| Product net weight | 350g | |
| Product size | 190mm x 90mm x 50mm | |
| Standard accessories | Battery, gold plated test leads, USB cable, temperature probe, English manual | |
| Standard individual packing | Box, cloth bag | |
