Fieldpiece Dual Input Temperature Meter ST4

Fieldpiece Dual Input Temperature Meter ST4

Sold out
$279.95
$279.95 - $279.95
$279.95
$223.95
$223.95 - $223.95
$223.95

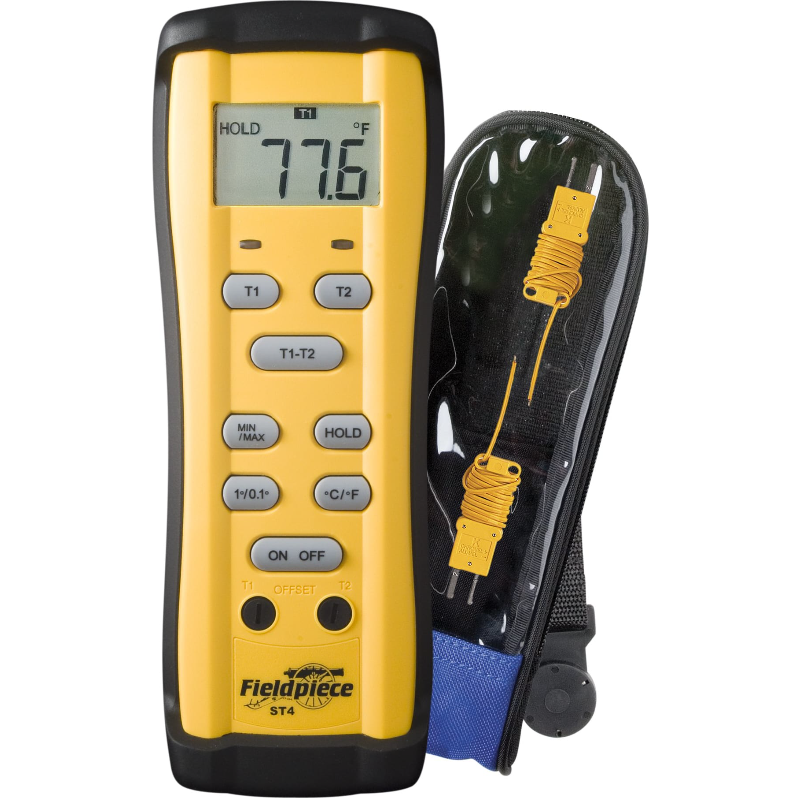

The Fieldpiece Dual-Temperature Meter, model ST4, measures two temperatures simultaneously using the included k-type, wrap tab beaded thermocouples. The technology inside the ST4 provides superior temperature compensation in rapidly changing environments commonly found while performing field service. Use the ST4 to find Delta T and just about any temperature split you want to measure.

Displays T1, T2 and T1-T2 in big numbers on the LCD screen. Features two front face calibration pots and comes in our clear front case with magnetic hanger model ANC6. Use with our optional ATWB1 wet bulb thermocouple to help you find target superheat or with our pipe clamp T/Cs to check for blocked dryer filters.

    Specifications
    • Probe length: 94mm (~3.75”) long
    • Operating environment: 32°F to 104°F (<90% RH)
    • Storage environment: 14°F to 140°F (<70% RH)
    • Battery: 2 x AAA (installed)
    • Battery life (alkaline): 40 hrs (IR), 750 hrs (ROD)
    • Auto-off: 3 min, 15 min (T1-T2 mode)
    • IR range: -20°F to 932°F (-30°C to 500°C)
    • Best resolution: 0.5°F/0.2°C
    • Accuracy: (@73°F, <80%RH, calibrated @ 30cm)
      ±4°F(±2°C),(-20°F to 32°F);
      ±3°F(±1.5°C),(32°F to 50°F);
      ±2°F(±1°C),(50°F to 104°F);
      ±3°F(±1.5°C) or 1.5% of rdg,
    • Field of view (D:S): 8:1
    • Response time: 0.5 seconds
    • Wavelength: 8µm to 14µm
    • Emissivity: E=0.95
    • Rod range: 40°F to 257°F (-40°C to 125°C)
    • Best resolution: 0.1°F/0.1°C
    • Accuracy: (@73°F, <80%RH)
      ±1°F(±0.5°C), (32°F to 122°F);
      ±2°F(±1.0°C), (<32°F, >122°F)
    • Response time: 20 seconds
    What's included
    • Dual-Temperature Meter - ST4
    • (2) K-type Wrap Tab Bead Thermocouples - ATB1
    • (2) Velcro Tie- wraps (not pictured)
    • Clear Front Nylon Bag with Magnetic Hanger - ANC6
    • 9-Volt Battery (installed)
    • Operator’s Manual
        Warranty

        12 months manufacturer's warranty

        Instructions & Manuals

        Fieldpiece Dual Input Temperature Meter ST4 Manual
