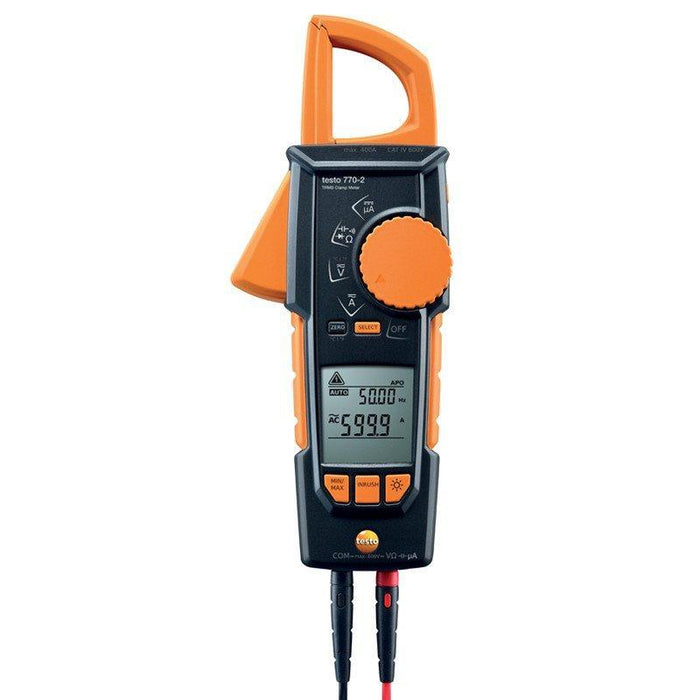

Testo 770-2 Clamp Meter - 0590 7702

Testo 770-2 Clamp Meter - 0590 7702

Save 21% Save 21%
$582.95
$582.95 - $582.95
$582.95
$459.99
$459.99 - $459.99
$459.99

The innovative grab mechanism makes the testo 770-2 the perfect clamp meter for non-contact measurements on tightly packed cables with a small diameter. In addition to the standard functions of the testo 770-1 clamp meter, it also offers a temperature adapter and measures current in the µA range.

The testo 770-2 cable-grabTM clamp meter makes it so much easier to work on tight measuring points, such as switching cabinets. The clamp meter's movable pincer arm can be fully retracted into the instrument. This means you can accurately grab tightly packed conductors such as cables and check them for faults.

Furthermore, it enables measurement of the starting current on electric motors and ionisation current testing in the µA range. In addition to electrical parameters, you can also measure temperatures with the integrated temperature adapter for type K thermocouples.

The clamp meter detects and selects AC/DC fully automatically and also provides automated selection of other electrical parameters such as resistance, continuity, diode and capacitance. This makes operation easier and more reliable than ever before. Your readings are clearly and distinctly presented on the two-line display.

Key Features

  • Fully retractable pincer arm for maximum flexibility
  • Auto AC/DC and large two-line display
  • Measuring functions for starting current on electric motors and μA measurements
  • Temperature adapter for type K thermocouples

Instructions & Manuals

Specification

TECHNICAL DATA

TESTO 770-1

TESTO 770-2

TESTO 770-3
True RMS YES YES YES
Basic accuracy 0.8 % 0.8 % 0.1 %
Voltage measuring range 1 mV to 600 V AC/DC 1 mV to 600 V AC/DC 1 mV to 600 V AC/DC
Current measuring range 0.1 to 400 A AC/DC 0.1 to 400 A AC/DC 0.1 to 600 A AC/DC
Power measurement - - YES
μA measuring range - 0.1 to 400 μA AC/DC 0.1 to 400 μA AC/DC
Resistance measuring range 0.1 Ω to 40 MΩ 0.1 Ω to 40 MΩ 0.1 Ω to 60 MΩ
Frequency measuring range 0.001 Hz to 10 kHz 0.001 Hz to 10 kHz 0.001 Hz to 10 kHz
Capacitance measuring range 0.001 μF to 100 μF 0.001 μF to 100 μF 0.001 μF to 60,000 μF
Temperature measuring range - -20 to +500 °C -20 to +500 °C
Bluetooth & testo
Smart Probes App		 - - YES
Continuity testing YES YES YES
Diode test YES YES YES
Display (counts) 4,000 4,000 6,000
Measurement category CAT IV 600 V
CAT III 1,000 V		 CAT IV 600 V
CAT III 1,000 V		 CAT IV 600 V
CAT III 1,000 V
Operating temperature -10 to +50 °C -10 to +50 °C -10 to +50 °C
Storage temperature -15 to +60 °C -15 to +60 °C -15 to +60 °C
Dimensions (L x W x H) 243 x 96 x 43 mm 243 x 96 x 43 mm 243 x 96 x 43 mm
Weight 378 g 378 g 378 g
Warranty 2 years 2 years 2 years
Authorizations TÜV, CSA, CE TÜV, CSA, CE TÜV, CSA, CE
Standards EN 61326-1,
EN 61140		 EN 61326-1,
EN 61140		 EN 61326-1,
EN 61140
