Testo 760-2 Digital Multimeter - 0590 7602

Testo 760-2 Digital Multimeter - 0590 7602

Save 20% Save 20%
$514.95
$514.95 - $514.95
$514.95
$409.99
$409.99 - $409.99
$409.99

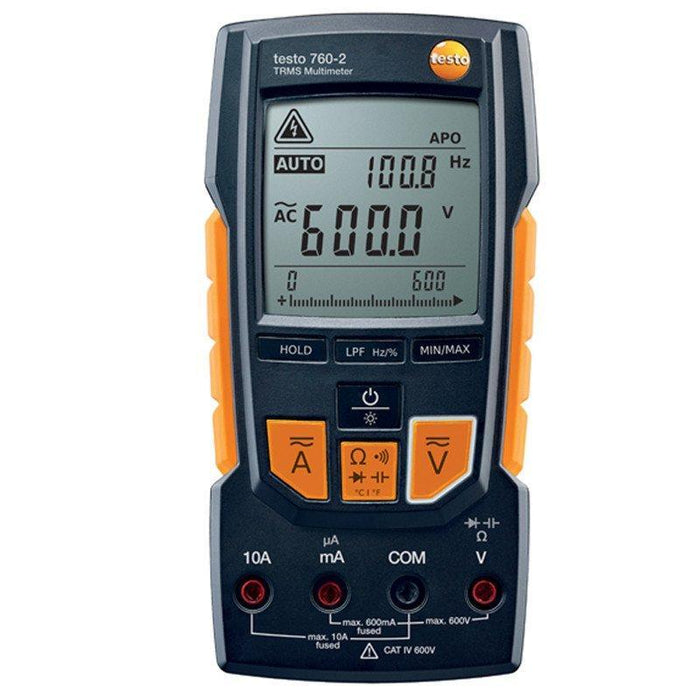

The testo 760-2 digital multimeter is the allrounder for all important electrical measuring tasks. Thanks to the automatic detection of measurement parameters, it offers the greatest possible reliability for every application. Using this digital multimeter, you can also measure current in the µA range and determine the true root mean square.

The testo 760-2 digital handheld multimeter means you can measure electrical parameters more easily and reliably than ever. In contrast to other multimeters, the testo 760-2 automatically detects the appropriate measurement parameter via the socket assignment – and therefore rules out any dangerous incorrect settings.

It is not operated conventionally by a dial but with illuminated function keys. This means you can easily control the measuring instrument with just one hand. The large, illuminated display shows the readings clearly.

The testo 760-2 digital multimeter has the most important functions for measuring current, voltage, and resistance. The measurement of current strength is also possible in the µA range thanks to the larger measuring range. And the integrated low-pass filter achieves more accurate measurement results on frequency converter-controlled motors.
Temperatures can also be measured with this multimeter in addition to electrical parameters.

BONUS: Includes a set of test leads and batteries.

Key Features:

  • True root mean square measurement - TRMS
  • Current measurement in the µA range
  • Integrated temperature adapter
  • Low-pass filter for accurate measurement results on frequency converter-controlled motors

Specifications

TECHNICAL DATA

TESTO 760-1

TESTO 760-2

TESTO 760-3
True RMS - YES YES
Basic accuracy YES 0.1 % 0.1 %
AC/DC voltage measuring range 0.1 mV to 600 V 0.1 mV to 600 V 0.1 mV to 1,000 V
AC/DC current measuring range 1 mA to 10 A 0.1 μA to 10 A 0.1 μA to 10 A
Resistance measuring range 0.1 to 40 MΩ 0.1 to 60 MΩ 0.1 to 60 MΩ
Frequency measuring range 0.001 Hz to
500 kHz		 0.001 Hz to
10 MHz		 0.001 Hz to
30 MHz
Capacitance measuring range 0.001 nF to
200 μF		 0.001 nF to
30,000 μF		 0.001 nF to
60,000 μF
Temperature measuring range - -20 to +500°C -20 to +500°C
Continuity testing YES YES YES
Diode test YES YES YES
Display (counts) 4,000 6,000 6,000
Overvoltage category CAT4/300 V
CAT3/600 V		 CAT4/600 V
CAT3/1,000 V		 CAT4/600 V
CAT3/1,000 V
Protection class IP 64 IP 64 IP 64
Operating temperature -10 to +50°C -10 to +50°C -10 to +50°C
Storage temperature -15 to +60°C -15 to +60°C -15 to +60°C
Dimensions (L x W x H) 167 x 84 x 45 mm 167 x 84 x 45 mm 167 x 84 x 45 mm
Weight 268 g 268 g 268 g
Warranty 2 years 2 years 2 years
Authorizations TÜV, CSA, CE TÜV, CSA, CE TÜV, CSA, CE
Standards EN 61010-1,
IEC 61326		 EN 61010-1,
IEC 61326		 EN 61010-1,
IEC 61326

Instructions & Manuals

Testo 760-2 Digital Multimeter - 0590 7602 Manuals

Electrical Range Brochure
