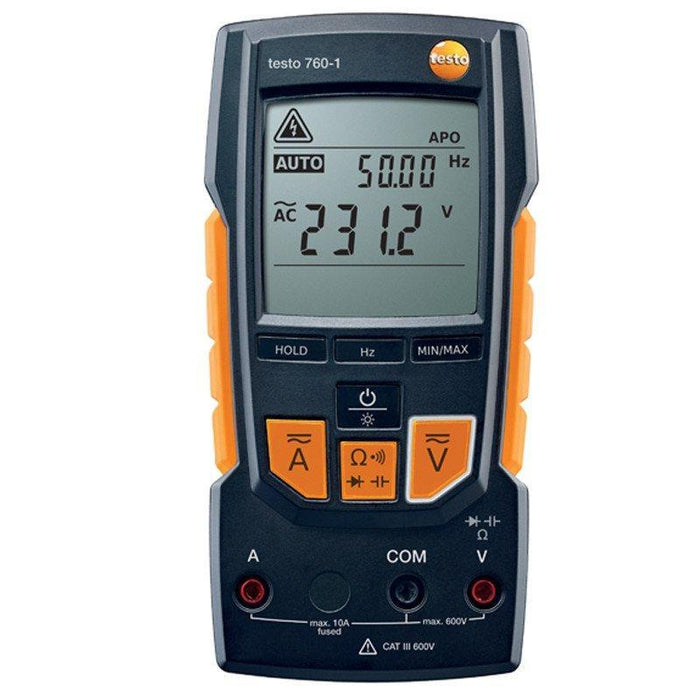

Testo 760-1 Digital Multimeter - 0590 7601

Testo 760-1 Digital Multimeter - 0590 7601

Save 23% Save 23%
$309.95
$309.95 - $309.95
$309.95
$239.99
$239.99 - $239.99
$239.99

No dial, no mistakes. The testo 760-1 digital multimeter gives you an easier and more reliable measurement of all important electrical parameters than ever before. Assignment of the measuring sockets enables the automatic detection of measurement parameters. You don't need to make any adjustments – and you can't make any mistakes.

You depend on reliable measuring instruments when measuring electrical parameters such as current, voltage, or resistance. The testo 760-1 hands you a digital multimeter that sets new standards in terms of reliability.

Compared to standard multimeters on the market, with the testo 760-1, there is no need first to select the measuring sockets and then the measurement function. The instrument detects the appropriate measurement parameter via the socket assignment all on its own – and so rules out any dangerous incorrect settings.

The operation of the multimeter is easier and more modern than ever. The traditional dial is replaced by function keys, enabling you to control the instrument with just one hand. And thanks to the large, illuminated display, you can see your readings. The testo 760-1 has the most important functions for your daily measuring tasks and is the ideal entry-level instrument in the digital multimeter class.

BONUS: Includes a free set of test leads and batteries.

Key Features:

  • Easy, reliable operation through automatic measurement parameter detection
  • Prevents incorrect settings
  • Suitable for almost all electrical measuring tasks
  • Clear, illuminated display

Specifications

TECHNICAL DATA

TESTO 760-1

TESTO 760-2

TESTO 760-3
True RMS - YES YES
Basic accuracy YES 0.1 % 0.1 %
AC/DC voltage measuring range 0.1 mV to 600 V 0.1 mV to 600 V 0.1 mV to 1,000 V
AC/DC current measuring range 1 mA to 10 A 0.1 μA to 10 A 0.1 μA to 10 A
Resistance measuring range 0.1 to 40 MΩ 0.1 to 60 MΩ 0.1 to 60 MΩ
Frequency measuring range 0.001 Hz to
500 kHz		 0.001 Hz to
10 MHz		 0.001 Hz to
30 MHz
Capacitance measuring range 0.001 nF to
200 μF		 0.001 nF to
30,000 μF		 0.001 nF to
60,000 μF
Temperature measuring range - -20 to +500°C -20 to +500°C
Continuity testing YES YES YES
Diode test YES YES YES
Display (counts) 4,000 6,000 6,000
Overvoltage category CAT4/300 V
CAT3/600 V		 CAT4/600 V
CAT3/1,000 V		 CAT4/600 V
CAT3/1,000 V
Protection class IP 64 IP 64 IP 64
Operating temperature -10 to +50°C -10 to +50°C -10 to +50°C
Storage temperature -15 to +60°C -15 to +60°C -15 to +60°C
Dimensions (L x W x H) 167 x 84 x 45 mm 167 x 84 x 45 mm 167 x 84 x 45 mm
Weight 268 g 268 g 268 g
Warranty 2 years 2 years 2 years
Authorizations TÜV, CSA, CE TÜV, CSA, CE TÜV, CSA, CE
Standards EN 61010-1,
IEC 61326		 EN 61010-1,
IEC 61326		 EN 61010-1,
IEC 61326
