Testo 750-1 Voltage Tester - 0590 7501

Testo 750-1 Voltage Tester - 0590 7501

Save 20% Save 20%
$152.95
$152.95 - $152.95
$152.95
$121.95
$121.95 - $121.95
$121.95

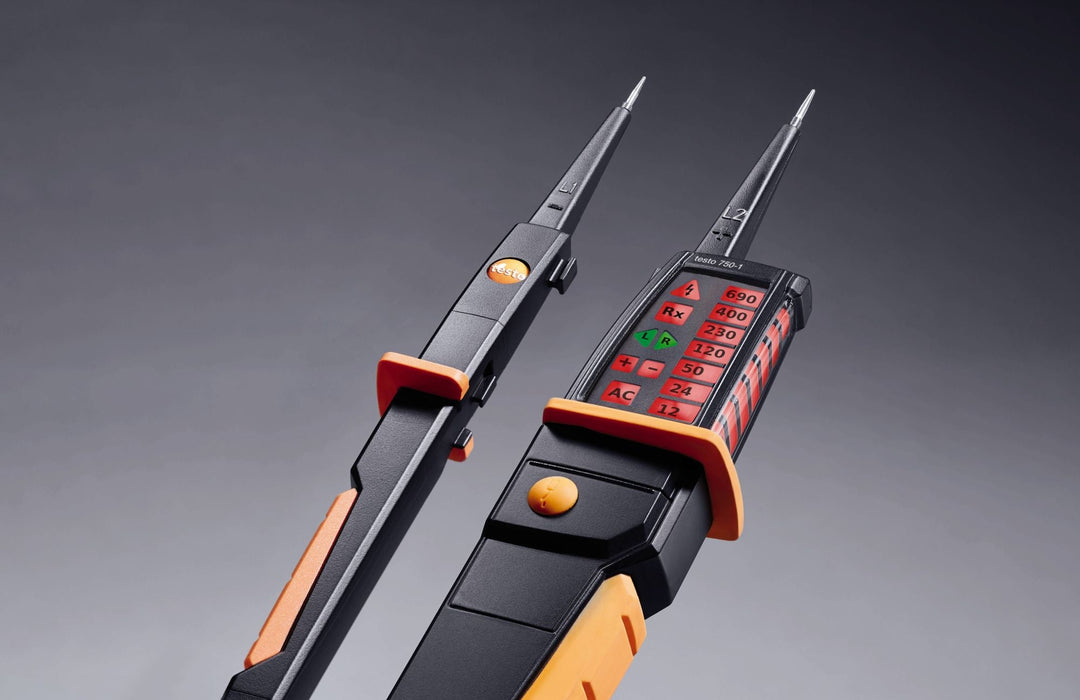

Your reliable companion when it comes to testing electrical systems and equipment. The all-around LED display and unique fibre-optic technology mean the voltage indication can be seen clearly and distinctly from any position with this voltage tester.

In contrast to the standard voltage testers on the market, the testo 750-1 voltage tester has an extremely practical all-around LED display that can easily be seen in every work position and from any location. In addition, large fiber-optic illuminators show the presence of voltage clearly and distinctly. The deep-seated anti-slip ring, the ergonomic handle shape, and the robust housing provide greater comfort when working. The robust design means the voltage tester is durable and reliable, even when used intensively.

The testo 750-1 voltage tester enables voltage or de-energization on electrical circuits or systems to be determined reliably. The instrument meets the latest EN 61243-3:2010 voltage tester standard and has a safety specification according to CAT III. In addition, it is suitable for continuity testing and rotating magnetic field measurement.

Specifications

  • Clear, patented all-round LED display
  • Meets the latest DIN EN 61243-3:2010 voltage tester standard
  • Safety specification according to CAT 3 & CAT 4
  • Robust housing with ergonomic handle and anti-slip ring

TECHNICAL DATA

TESTO 750-1

TESTO 750-2

TESTO 750-3
Voltage testing 12 to 690 V 12 to 690 V 12 to 690 V
Continuity testing < 500 kΩ < 500 kΩ < 500 kΩ
Rotating magnetic field testing 100 to 690 V at
50/60 Hz		 100 to 690 V at
50/60 Hz		 100 to 690 V at
50/60 Hz
Single pole phase testing - 100 to 690 V at
50/60 Hz		 100 to 690 V at
50/60 Hz
RDC/RC trigger function - YES YES
LC display - - YES
Measuring point illumination - YES YES
Overvoltage category CAT4/600 V
CAT3/1,000 V		 CAT4/600 V
CAT3/1,000 V		 CAT4/600 V
CAT3/1,000 V
Protection class IP 64 IP 64 IP 64
Operating temperature -10 to +50°C -10 to +50°C -10 to +50°C
Storage temperature -15 to +60°C -15 to +60°C -15 to +60°C
Dimensions (L x W x H) 270 x 65 x 35 mm 270 x 70 x 35 mm 270 x 70 x 35 mm
Weight 119 g 243 g 243 g
Warranty 2 years 2 years 2 years
Authorizations TÜV, CSA, CE TÜV, CSA, CE TÜV, CSA, CE
Standard EN 61243-3:2010 EN 61243-3:2010 EN 61243-3:2010
