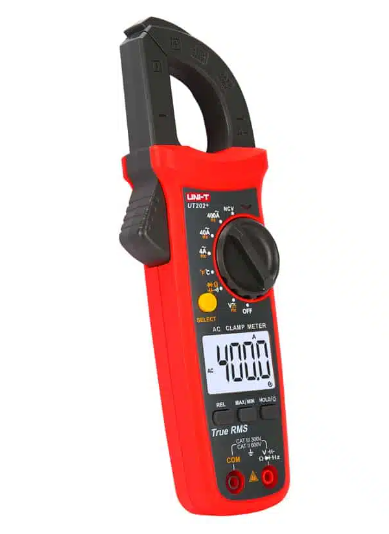

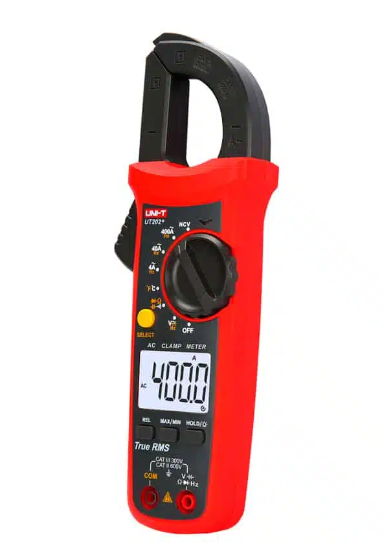

The UT202+ design offers improved user functionality with AC Current and AC/DC voltage along with a full range of functions including temperature measurement.
FEATURES:
- CAT III 300V / CAT II 600V rating
- True RMS / Auto range
- NCV
- Large LCD 4000 display count
- 28mm Jaw opening
- AC current, AC/DC voltage
- Temperature measurement (-40℃~1000℃)
- Resistance and capacitance
- Min / max, relative mode, and data hold.
INCLUDES:
1 x UT202+, Test leads, Batteries, Carrying Bag, Thermocouple and a 12-Month Warranty.
SPECIFICATIONS:
| Specifications | Range | UT202+ | UT204+ |
| AC current (A) | 400A | ±(2%+10) | |
| 600A | ±(2.5%+5) | ||
| AC current frequency (Hz) | 50Hz~100Hz | ±(1%+5) | |
| DC current (A) | 400A | ||
| 600A | ±(2.5%+5) | ||
| AC voltage (V) | 600V | ±(0.8%+5) | ±(0.8%+5) |
| AC voltage frequency(Hz) | 10Hz~10kHz | ±(1%+5) | |
| 10Hz~60kHz | ±(0.5%+2) | ||
| DC voltage (A) | 600V | ±(0.5%+2) | ±(0.5%+2) |
| Resistance (Ω) | 40MΩ | ±(0.8%+2) | |
| 60MΩ | ±(0.8%+2) | ||
| Capacitance (F) | 4mF | ±(4%+5) | |
| 40mF | |||
| 60mF | ±(4%+5) | ||
| Temperature (℃) | -40℃~1000℃ | ±(1.5%+5) | ±(1.5%+5) |
| Frequency (Hz) | 10Hz~10MHz | ±(0.1%+4) | |
| Features | |||
| Display count | 4000 | 6000 | |
| Auto range | √ | √ | |
| Jaw opening | 28mm | 28mm | |
| True RMS | √ | √ | |
| NCV | √ | √ | |
| Live wire test | √ | ||
| Continuity test | √ | √ | |
| Diode | √ | √ | |
| MAX/MIN | √ | √ | |
| Relative mode | √ | √ | |
| Zero mode | √ | ||
| Data hold | √ | √ | |
| Low battery indication | √ | √ | |
| Auto power off | √ | √ | |
| General Characteristics | |||
| Power | AAA (Ro3) x 2 | ||
| Display | 37mm x 25mm | ||
| Product colour | Red and grey | ||
| Product net weight | UT202+：248g; UT204+:235g | ||
| Product size | 215mm x 63mm x 36mm | ||
| Standard accessories | Batteries, test leads, Thermocouple (UT202+/UT204+) | ||
| Standard individual packing | Box, Carrying bag, English manual | ||
