Nitrogen Pressure Testing Guide: Procedure, Safety & Pass/Fail

The “Quiet Step” That Saves Call-Backs

Pressure testing with nitrogen is one of those steps that doesn’t look exciting on the job, but it’s often the difference between “one-and-done” and “back here next week”. If you’ve ever pulled a vacuum, charged a system, and then found a tiny leak later, you already know the pain: lost time, lost gas, and a customer wondering why the new install isn’t holding.

A proper nitrogen pressure test is about two things: proving the pipework is sealed, and proving your brazing and joints are clean before you go any further. Done well, it also supports better evacuation, because you’re not trying to vacuum down a system that’s still leaking or full of questionable workmanship.

This guide walks through best practice for a nitrogen test on HVAC and commercial refrigeration work in Australia: how to set up the rig, how to control contamination, how to stay safe around high pressure cylinders, and how to judge pass/fail without guessing.

One important note: exact test pressures and hold requirements are not “one size fits all”. Always follow the manufacturer guidance for the unit and the rated limits of the components you’re testing. Your process is about control, stabilisation, and repeatability—so the result means something.

Why Nitrogen (Not “Just Air”) Is the Right Test Gas

In HVAC trade talk, you’ll hear “pressure test with nitrogen” as the default because dry nitrogen is stable, non-flammable, and doesn’t add moisture the way shop air can. Moisture is the enemy. It can lead to poor vacuum results and long-term reliability issues, especially if the system has been opened up for brazing or repairs.

Shop air can also carry oil mist and contaminants, depending on the compressor and the condition of the air line. That’s not what you want inside refrigeration pipework. Even if the job “works” today, contamination is what makes tomorrow’s job harder—blocked strainers, sticky valves, unstable operation, or evacuation that takes forever.

Another key point is control. With a proper nitrogen regulator and gauges, you can ramp pressure up slowly, hold it steady, and make meaningful pass/fail calls. That’s much harder to do reliably when people are improvising with mismatched fittings, tired hoses, or unknown gauge condition.

Just as important: never use oxygen for pressure testing. Oxygen plus oil and heat is a serious fire/explosion risk. Nitrogen is the safe, standard approach for this workflow.

What You’re Really Proving in a Nitrogen Pressure Test

A pressure test is not just “it didn’t drop, so we’re good”. You’re proving the full circuit is sealed under stress, and you’re proving your joints can hold once the system heats and cools through real operation. That’s why test discipline matters: stable temperature, stable hoses, and stable isolation.

On a fresh install or major repair, it’s normal for techs to feel confident right after brazing because everything looks neat. But small leaks don’t always show themselves immediately. A controlled pressure hold gives the job a chance to “tell the truth” before you invest time in evacuation and commissioning.

You’re also proving your process is clean enough to proceed. On brazed pipework, poor nitrogen purge can leave internal oxidation (scale). The pressure test is the natural checkpoint where you confirm, “my work is tight and controlled, and I’m not about to bury a problem under the next step.”

For most techs, the biggest outcome is confidence. When you pass a controlled nitrogen pressure hold, you go into evacuation and charging with far less doubt. That confidence saves time because you’re not second-guessing every gauge movement later.

There’s also a simple “weakest link” reality on most jobs. Your circuit might be rated for serious pressure, but one component or connection type might not be. That’s why the smart approach is always to test within the rated limits of the equipment you’re actually pressurising, not what the cylinder can deliver. The goal is to prove integrity, not to punish the system.

Finally, remember what the pressure test does for the rest of the day. If you’re seeing a system that won’t hold nitrogen, it won’t hold vacuum either. And if it won’t hold vacuum, you’re about to waste time chasing moisture readings, unstable microns, and ugly commissioning numbers that are really just “leak problems in disguise”.

Gear You Need for a Clean, Repeatable Pressure Test Setup

A solid nitrogen test setup doesn’t need to be fancy, but it does need to be consistent. The goal is to minimise leak points in your test rig while still giving yourself control and visibility.

You generally want: a nitrogen cylinder suited to the job, a regulator made for nitrogen service, pressure-rated hoses in good condition, and gauges you trust. Many techs will pressure test through their manifold set or a digital manifold because it’s already part of their workflow and gives clear readings.

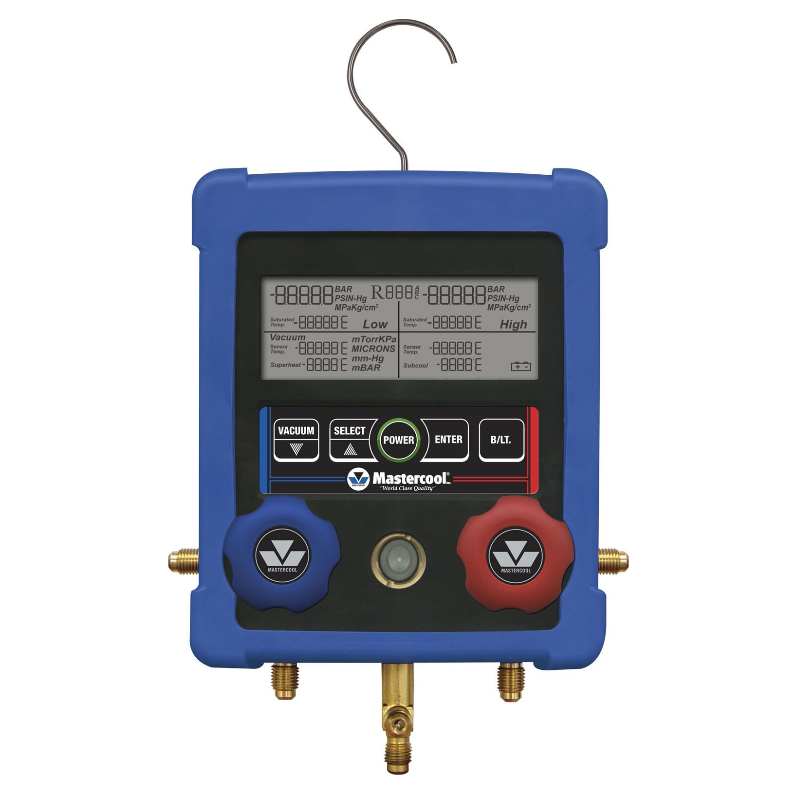

If you’re using digital manifolds in your workflow, you’ll usually choose a simpler 2-valve set for straightforward systems, and a 4-valve set when you want faster workflows or you’re managing more connections on bigger jobs. If you’re reviewing options, these collections are clean reference points: 2-valve digital manifolds for pressure testing and commissioning and 4-valve digital manifolds for complex rigs and faster workflow control.

One advantage of a digital manifold during pressure testing is how clearly it shows tiny trends. If you’re waiting through stabilisation, a clean digital display helps you separate “settling” from “drift”. It’s also easier to capture a clear starting number and an ending number for your notes, especially when you’re jumping between multiple units on a site.

Regulator quality matters too. A regulator that’s sticky, inconsistent, or hard to fine-tune makes it difficult to ramp pressure slowly. That’s when people overshoot, then vent, then re-pressurise, and they end up creating extra temperature swings that muddy the result. A smooth regulator lets you land on the target pressure calmly, then stop touching the system so the hold is meaningful.

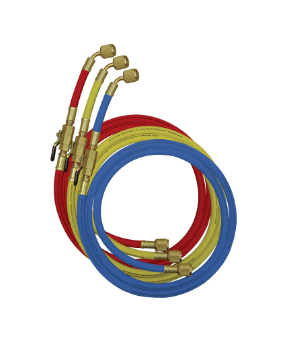

Hose choice matters more than people expect. Cheap or tired hoses can leak at the fittings, which creates a false “system leak” diagnosis. Use pressure-rated hoses in good condition, keep your seals fresh, and keep your connections supported. If you need to replace or standardise hoses for testing and charging work, start here: charging hoses suitable for pressure testing and refrigeration service work.

A good habit is to treat your pressure test hoses like measurement gear, not “just hoses”. Keep caps on the ends. Store them clean. Replace worn washers before they become a job-stopper. If you’re always fighting tiny leaks at the hose swivels, you’ll never fully trust your pass/fail result, and you’ll end up wasting time double-checking work that was probably fine.

Connection control is the other big part. The more adapters and odd fittings you stack up, the more potential leak points you create. If you know you’re doing a lot of splits, ducted installs, or light commercial, it’s worth standardising the fittings and hose ends you use most so the rig is consistent. Consistency is what makes the numbers believable.

One underrated part of a clean rig is preventing backflow where it shouldn’t happen, especially when you’re swapping hoses, isolating sections, or doing controlled purge flow. A simple non-return valve can help in the right place in a rig, when it’s rated and applied correctly. Here’s an example product reference: non-return valve to help prevent backflow in a service setup.

The mindset is simple: the cleaner and tighter your test rig is, the more confident your pass/fail call becomes. If your rig leaks, every job becomes a debate—because you can’t tell if you’re seeing a system leak or a tool problem.

One more practical tip: support matters as much as tightness. If your manifold or hoses are hanging with a sideways load on a flare or service port, you can “create” a leak with mechanical stress. Once you support the rig properly, the leak disappears. That’s not a pass/fail win, it’s a reminder that mechanical strain is part of leak control too.

Step-by-Step: Nitrogen Pressure Testing Procedure (Real-World Workflow)

This is the practical, repeatable way to run a nitrogen test without turning it into a guessing game. The exact test pressure and hold requirements should always be based on manufacturer guidance and the rated limits of the equipment. Your job is to follow that guidance and make your test meaningful.

A good rule of thumb for workflow is to think in stages: first, a controlled setup and rig proof. Next, a slow pressure rise with early leak spotting. Then a stabilisation window (so temperature effects don’t fool you). Finally, a hold window where the result is judged and recorded.

Step 1: Confirm the system is ready to be tested

Start with the basics. Your pipework should be complete, joints finished, and any obvious mechanical risks addressed. If it’s a new install, make sure caps and valves are in the correct position for the part of the circuit you’re testing. If it’s a repair, make sure you’ve isolated the correct section so you’re not pressurising something you didn’t intend to.

Check that your service access is safe and stable. A nitrogen test can put real stress on weak connections. If your manifold is hanging off a fitting with no support, vibration or movement can create a leak that isn’t really there once you tidy it up. Support the hoses so the joints aren’t under bending load.

If you’ve used flare connections, confirm they’re properly seated and the mating surfaces are clean. If you’ve used schrader ports, make sure you’re not relying on a questionable core. If something looks marginal before pressure goes on, fix it now—before you create a bigger problem at higher pressure.

Step 2: Connect the rig and prove your gauges

Connect your regulator and hoses, and confirm your gauges are reading cleanly. If you’re using a digital manifold, give it a moment to settle. If you’re using an analogue manifold, confirm the needles aren’t sticky and the faces are readable.

Now do the first discipline check: isolate the test rig where you can and confirm it holds. This is how you avoid chasing a phantom leak that was actually a cracked hose washer or a loose swivel. If the rig drifts when isolated, fix the rig before the system ever enters the conversation.

If your setup includes extra adapters or unusual fittings for a specific site, treat those as high-risk leak points and double-check them early. Less “stuff” in the chain usually equals less troubleshooting later.

Step 3: Raise pressure slowly (no surprises)

Open the nitrogen and raise pressure slowly. Slow is not “wasting time”. Slow is what keeps the test controlled and safe. A fast pressure rise can hide a problem because you’re reacting to noise, not making a measured decision. A slow rise lets you listen, smell, and spot obvious leaks immediately.

As you increase pressure, keep checking your connections. If you see movement or hear a hiss, stop, correct it, then continue. This is also where you confirm you’re not exceeding any rated limits. Use the manufacturer’s instructions and unit data plate guidance for what “safe test pressure” means for that specific job.

Many techs also do a quick early leak check during the rise. If a braze is obviously leaking, it’s far better to discover it early than to push further and create more noise in the system.

Step 4: Stabilise temperature before you judge anything

This is where a lot of “failures” are actually just physics. Pressure changes with temperature. If you just raised pressure quickly, the gas can warm, then cool, and your gauge will move even with a perfect seal.

The fix is simple: allow the pressure to stabilise before you decide pass or fail. In practice, you set pressure to the correct level, then wait. During the wait, don’t touch the hoses, don’t bump the manifold, and don’t vent anything “just to see”. Let it settle, then start your meaningful hold window.

If you’re on a rooftop with sun shifting across the pipework or cylinder, expect some movement during stabilisation. Your job is to separate “normal settling” from “ongoing drift that indicates loss”.

Step 5: Run the hold test and log what matters

Once stable, start your hold. The hold time should match the job risk and site requirements. For high-risk sites, longer holds are common. For smaller routine work, the key is still the same: stability and repeatability.

Log the start pressure, the ambient temperature (even roughly), and the time. If the pressure moves slightly but ambient also moved, you may be seeing temperature effect rather than leak. Your notes help you make that call properly.

If you’re working across multiple assets, logging is not “paperwork for paperwork’s sake”. It’s how you build faster diagnosis later. When a site calls you in six months, you can look back and say: it held, it was clean, and here’s what changed since.

Step 6: If it drops, don’t panic — move into leak finding

If you see a meaningful pressure drop after stabilisation, treat it as a leak until proven otherwise. The right move is not to top it up and hope. The right move is to find the leak while the system is pressurised.

This is where a good leak detection workflow saves huge time. Many techs start with bubbles on likely joints, then move to an electronic detector for harder-to-find leaks. If you want a simple product reference for the electronic side, start here: electronic leak detectors to find small leaks during nitrogen pressure tests.

If you still can’t find it, go back to rig proof. Isolate the system from the manifold if you can and see if the drift changes. Swap a hose. Re-check the manifold valves. A surprising number of “system leaks” turn out to be a tired hose or a leaking manifold seal.

Contamination Control: Nitrogen Purge While Brazing (Why It Still Matters Later)

Pressure testing and nitrogen purging are related, but they’re not the same thing. The pressure test proves seal integrity. The purge protects internal cleanliness during brazing. If you skip purge, you can still “pass” a pressure test, but you may be setting up a future restriction or reliability issue.

When you braze copper without a nitrogen purge, oxidation scale can form inside the pipe. That scale can break free later, travel through the circuit, and lodge in places that matter: screens, solenoid valves, expansion devices, cap tubes, and oil return paths. The symptoms later can look like “mystery faults” — poor cooling, hunting, or intermittent restrictions.

A controlled nitrogen purge is about steady, low flow while brazing, not blasting pressure through the pipe. That’s why purpose-built purge tools exist: they’re designed to regulate flow in a predictable way so you’re not improvising. If you want a practical reference item for that part of the workflow, this is the kind of tool that supports a cleaner result: nitrogen purge tool for controlled flow while brazing.

Contamination control also includes what happens after brazing. If you’ve got dirty pipe ends, moisture in open pipework, or fittings left uncapped on a dusty site, those contaminants don’t magically disappear. They show up later as longer evacuation times, unstable charging results, or oil issues.

Think of cleanliness as part of “doing the job once”. The pressure test proves it’s tight. The purge proves it’s clean. Both matter if you want stable commissioning and fewer strange faults later.

Safety: Nitrogen Cylinders, High Pressure, and Safe Work Practice

Nitrogen is safe as a gas choice, but the pressure side of the job is not something to take lightly. Cylinders contain stored energy. Hoses can whip if a fitting fails. And pressurising a system beyond its rated limits can damage components or cause an incident.

Start with the cylinder. Secure it upright. Don’t leave it free-standing on a slab where it can be knocked. Use the right regulator for nitrogen service, and don’t “mix and match” adapters that don’t belong. If something doesn’t fit properly, stop and correct it.

Wear appropriate PPE for the site. Protect your eyes. Protect your hands. Keep your body out of the line of fire if you’re opening valves. And don’t let a manifold or hose hang unsupported off a weak joint.

Also think about environment. In enclosed or poorly ventilated areas, gas release can create an asphyxiation risk. Don’t vent nitrogen in a confined space. Keep the workspace ventilated and controlled.

Pressure testing is also not the place for improvised safety decisions. If you need a general Australian safe work reference point, use Safe Work Australia.

On real sites, “safe work” often comes down to simple positioning. Stand to the side of regulators and valves when opening them. Keep your face out of line with potential hose whip. Don’t let anyone stand in front of a cylinder valve while you’re adjusting the regulator. And if you’re on a roof, treat trip hazards like pressure hazards: hoses, cylinder position, and access points need to be tidy so you don’t knock something while the circuit is pressurised.

Another safety issue that catches techs out is thermal stress. If the cylinder is sitting in full sun, or the pipework is baking on a rooftop, pressure can creep as temperatures rise. That’s not the system “leaking up”, it’s just physics. If you want stable results, shade the cylinder where you can, keep the rig supported, and don’t keep re-touching the setup during the hold window. A calm setup is a safer setup.

Finally, treat every fitting like it can fail if it’s abused. If a hose looks damaged, if a swivel is rough, or if a valve stem is weeping, don’t “send it anyway”. Pressure testing is the stage where small gear problems become loud, risky problems. Fix the gear, then test.

Pass/Fail: How to Judge a Pressure Hold Without Guessing

The cleanest pass/fail method is: stabilise first, then hold, then interpret with temperature in mind. If you skip the stabilisation step, you can fail good work or pass bad work for the wrong reasons.

Here’s the simple mental model. If pressure drifts during stabilisation, that can be normal. If pressure continues to drift during the hold window, with stable ambient and no mechanical movement, that’s a problem. If pressure drops quickly, it’s almost always a real leak. If pressure drops slowly, it can still be a leak — it may just be small enough to be hard to hear.

Also watch for “false fails” caused by your rig. Hose connections, valve stems, manifold seals, and adapters are common culprits. That’s why proving the test rig first is such a big time saver.

To keep pass/fail decisions calm, it helps to think in three checks. First: did the rig hold when isolated? Second: did the system stabilise after the pressure rise? Third: did it remain stable during the hold window without you touching anything? If you can answer “yes” to all three, your pass call is defensible.

Temperature is the biggest “lie” in pressure testing. Sun hits the liquid line, pressure creeps up. Cloud cover rolls in, pressure dips. Wind changes, lines cool, gauges move. If the ambient conditions are shifting, note it, because it explains small pressure movement that isn’t leak-related. This is also where patience pays off. The longer you let the system equalise before starting the hold window, the less you’ll argue with the gauges later.

If you do need to decide whether a small change is leak or temperature, don’t guess by feel. Re-check the environment first. Is the cylinder in sun now? Did the roof surface heat up? Did someone open a plant room door and change airflow over the unit? You’re not looking for “perfect stillness”, you’re looking for behaviour that makes sense. When the behaviour doesn’t make sense, that’s when you move to leak finding.

Finding Leaks Faster: Bubbles, Electronic Detectors, and Smarter Order of Attack

If your pressure test fails, speed comes from method, not from hookup. Start with the most likely points first: fresh brazes, flares, service valves, schrader cores, and anywhere you touched during the job. Many leaks are “tech-created”, which is good news because they’re usually fixable quickly.

Bubble solution is often the fastest first check because it gives a clear visual. Work methodically. Don’t splash and guess. Apply bubbles to each joint and watch. If you see growth, you’ve got your spot.

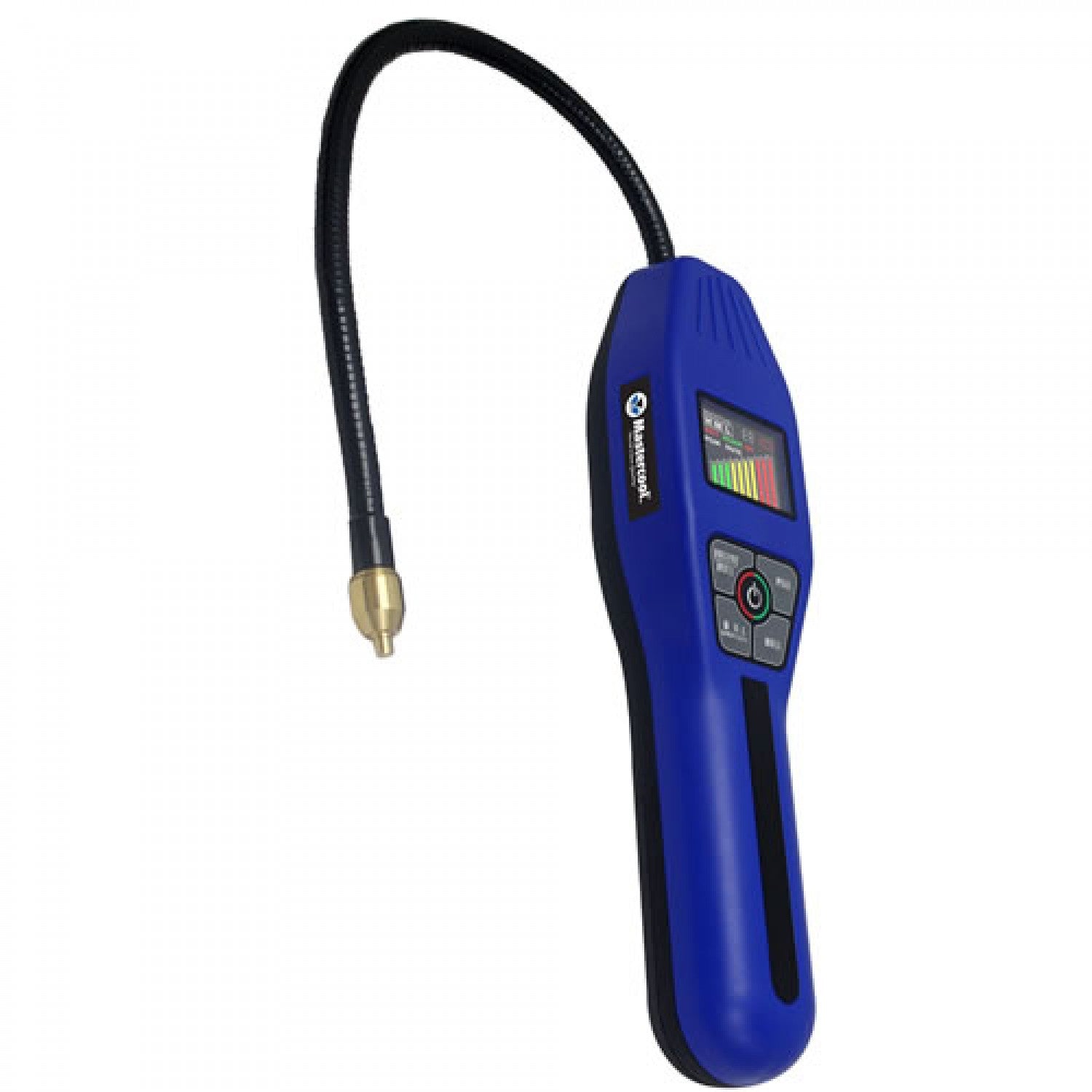

If bubbles don’t show anything, move to electronic detection. That’s especially useful where joints are tucked behind panels or access is limited. If you need a product reference starting point for that side of the workflow, use this collection: leak detectors for pressure testing and commissioning workflows.

If you still can’t find it, go back to rig proof. Isolate the system from the manifold if you can and see if the drift changes. Swap a hose. Re-check the manifold valves. A surprising number of “system leaks” turn out to be a tired hose or a leaking manifold seal.

After the Pressure Test: Vent Safely, Then Evacuate Properly

Once you’ve passed the nitrogen hold and you’re happy with leak checks, the next step is to remove the nitrogen safely and move into evacuation. Don’t rush this changeover. The changeover is where people introduce contamination (open ports, dirty fittings) or create leaks (cross-threaded adapters, damaged seals).

Use a clean process. Vent nitrogen safely in a controlled way, then set up for vacuum with hoses and fittings that are actually suited to evacuation work. If you’re lining up gear for the evacuation side after pressure testing, these collections are practical references: evacuation kits for pulling a proper vacuum after pressure testing and vacuum hoses and core tools to speed up evacuation after nitrogen testing.

Even if this guide is focused on nitrogen pressure testing, the real-world truth is the steps join together. A clean pressure test supports a faster, more confident vacuum. A clean vacuum supports more stable charging and fewer “mystery” call-backs.

Documentation: What to Write Down So the Test Means Something Later

On small jobs, logging can be quick: start pressure, time, ambient note, end pressure, and “leak checks completed”. On bigger sites, you may log more detail. The goal isn’t to create admin work. The goal is to create proof and context.

When a site asks “did you pressure test it?”, you want an answer that’s calm and clear. When a future tech asks “was it clean?”, you want to show that purge and leak checks were part of the process. Documentation also helps you diagnose later. If a system develops a leak months later, a good pressure test record tells you the leak is likely new damage, not original workmanship.

If you use a digital manifold during testing, many teams also note the stabilisation window and any environmental factors (sun, wind, rooftop exposure). That one line of context can save an argument later because it explains why you waited before starting the hold window.

To keep it practical, write notes that answer the questions you’ll get later. What circuit did you test? What did you isolate? What did you pressurise through? When someone reads the job card six months from now, they should be able to picture the test without ringing you for “what did you actually do?”

It also helps to record what you did before the hold. If you ramped pressure slowly and did an early leak scan, note it. If you shaded the cylinder or moved it out of sun to avoid temperature creep, note it. Small details like that explain why the numbers behaved the way they did.

Finally, keep your language consistent. “Held stable after stabilisation window” is clearer than “seemed okay”. “Rig proven isolated” is clearer than “gauges looked fine”. The cleaner the wording, the less chance you’ll be pulled into a debate later about whether the test was real or just a quick glance at a needle.
