HVAC Multimeter Safety Guide: CAT Ratings, Leads, and Essential Tests

Your Multimeter Shouldn’t Be the Risky Part of the Job

On HVAC sites, the multimeter is meant to remove guesswork. But if the meter is under-rated, the leads are cooked, or the test method is shaky, the meter becomes the hazard.

This guide is written in plain Aussie English for tradies, HVAC techs, and maintenance teams. We’ll keep it practical: what CAT ratings really mean for HVAC work, why leads matter as much as the meter, and the common tests you’ll do every week (without taking silly risks).

Quick reality check: electrical work in Australia has rules for a reason. If you’re not licensed for the task, keep your checks to what you’re allowed to do on-site and bring in a qualified sparky when it crosses the line. A safe job is always cheaper than a bad day.

Most of the risk with multimeters isn’t “meters exploding” like a YouTube clip. It’s the quieter stuff that happens on real jobs. A probe slips in a tight contactor. A lead has a hidden split near the strain relief. Someone leaves the leads in the wrong ports and does the next test on autopilot. Or a tech leans into a panel to see the display and bumps a live terminal with their wrist. None of that feels dramatic until it becomes a near miss.

So the goal of this article is simple. Build a routine that’s boring, repeatable, and safe. If you do the same safe setup every time, the readings become more reliable too. You stop re-testing things because you don’t trust the result, and you stop “chasing ghosts” caused by a dodgy connection or a flaky lead.

CAT Ratings for HVAC: What They Mean on Real Jobs

CAT ratings sound boring until you’re standing at a switchboard, a rooftop isolator, or a plant room panel with a meter in your hand. The CAT rating is your safety buffer for the environment you’re testing in.

Here’s the simple way to think about it. The closer you are to the source of supply (mains, switchboard, distribution), the higher the fault energy and the bigger the spikes can be. That’s where under-rated meters and cheap leads get people hurt.

On HVAC jobs, you can bounce between low-energy control circuits and higher-energy mains circuits on the same unit. That’s why many techs pick one solid, properly rated meter they trust, then keep their method consistent.

One thing that catches people out is that “normal running voltage” doesn’t equal “normal risk”. Motors, contactors, and compressors are inductive loads. They can create nasty transients when they switch, and the network can throw spikes at you as well. A meter that’s fine on a bench can be the wrong tool when you’re measuring at an isolator feeding a compressor that’s been short-cycling all morning.

Also, don’t treat CAT labels like a magic forcefield. The label assumes you’re using the meter the way it was designed: correct input jacks, correct range, good leads, probe tips not too exposed, and no sloppy bridging in tight spaces. That’s why a good meter plus poor technique is still a risky combo.

A practical HVAC example is the rooftop isolator feeding an outdoor unit. It might “only” be a normal supply, but it’s still fixed wiring and it’s still an environment where faults can release serious energy. Another example is a plant room panel where multiple loads switch in and out and the electrical noise is higher. On those jobs, the meter’s rating matters, but so does the way you physically take the reading.

Inverters and drives can add another layer. You might be working around equipment that switches quickly and creates noisy signals. That’s not a reason to do risky tests, but it is a reason to respect that real-world waveforms and transients aren’t always tidy. The safer approach is using the right meter for the environment, keeping probes controlled, and avoiding “poke-and-hope” testing in live compartments.

If you ever find yourself thinking, “I’ll just check it quickly,” that’s usually the moment to slow down. Fast doesn’t mean safe. Fast means you’ve already built a routine that lets you move calmly without improvising.

The big trap is thinking the meter is “CAT III” so you’re safe anywhere. CAT rating is one part. Your leads, probe tips, technique, and the exact test point matter just as much.

Another practical trap is mixing jobs. A meter that’s fine for residential splits can be the wrong fit if you’re stepping into commercial plant rooms with bigger feeds, more fault energy, and tighter switchboard work. If your work has shifted, your test gear should shift too.

It also helps to be honest about the test point you’re aiming at. If it’s cramped, close-spaced, and you’re reaching around sharp sheet metal, that changes the risk. Even with the right rating, your hands still need a clean path and a stable position. If you can’t get a controlled approach, the safer move is to isolate, re-position, or escalate the test to someone authorised to do it safely.

If you’re reviewing your kit, start with a trusted category so you’re not guessing what’s suitable for HVAC electrical work: HVAC multimeters suitable for safe electrical testing in Australia.

Leads and Probes: The Part Most People Forget to Check

Most multimeter accidents aren’t because the meter “stopped working”. They’re because the leads were damaged, the probe tips were too exposed, or the user bridged something they didn’t mean to.

Start with the basics. If the insulation is nicked, hard, cracked, or sticky, replace the leads. If the strain relief at the plugs is split, replace the leads. If the probe tips are long and sharp with no finger guards, be extra careful in tight panels because it’s easy to touch two points at once.

For HVAC fault-finding, silicone leads are popular because they stay flexible in the cold, don’t go stiff in winter plant rooms, and handle daily bending without splitting as fast as cheap PVC leads. The lead kit is not the place to “save a few bucks”.

It’s also worth checking the “little details” that stop big mistakes. Shrouded banana plugs seat more securely. Probe tip covers reduce exposed metal in cramped gear. And if you’re testing in a panel where terminals are close together, shorter tips can be the difference between a clean reading and an accidental bridge.

One more thing: the meter’s internal protection is part of the safety story too. If you’ve ever blown a meter fuse because the leads were left in the wrong port, you know how quickly a job can go sideways. Good habits (and good lead control) prevent those “oops” moments before they happen.

A simple habit that saves time is doing a quick lead “wiggle check” before you start. If the reading flickers when you gently move the lead near the plug, that’s a warning sign. Leads can break internally while still looking fine on the outside. That’s how you end up chasing faults that aren’t real, because your test gear is the thing dropping out.

Also think about what HVAC does to your leads over time. UV on rooftops, sharp panels, heat, oil residue, cleaning chemicals, and being jammed in tool bags all day. Leads are consumables in real life. If you treat them like “forever parts”, they’ll eventually become the weak link at the worst moment.

Storage matters too. If you throw leads loose into the van, the probe tips get bent, the insulation gets rubbed, and the plugs get knocked. Keeping leads coiled neatly and capped reduces damage and keeps the metal clean. Clean metal means better contact and less “why is this reading jumping?” drama.

If you want a clean, pro-grade lead setup that’s built for service work, use a proper kit and keep it consistent across jobs. This is the kind of product reference most techs mean when they say “get decent leads”: Deluxe silicone test lead kit for safer HVAC multimeter testing.

Adaptor handles and accessory heads can also make testing safer because they keep your grip stable and your fingers behind a proper guard. If you use that style of setup, here’s a relevant example product reference: Adaptor handle with leads for safer accessory head testing on HVAC systems.

Even if you don’t use accessory heads, the idea is still useful: keep your hands stable and keep your fingers behind guards. A lot of “oops” moments happen because someone is trying to hold probes with a pinched grip in a tight space. Better grip equals better control.

A Safe Testing Routine That Works on Busy Sites

Good multimeter safety isn’t a long speech. It’s a repeatable routine you do every time, even when the customer is watching and the job is “just a quick one”.

Step one is always the same: know what you’re about to test. Is it mains? Is it low voltage control? Is it a board you can damage if you slip? If you’re not sure, stop and identify the circuit before you put probes anywhere.

Step two is setting up your meter correctly. Wrong range or wrong mode causes more confusion than people admit. If you’re checking voltage, make sure the leads are in the correct ports and the dial is on volts. If you’re checking current with a clamp, make sure you’re clamping one conductor, not a whole cable.

Step three is body position and probe control. Keep your stance stable. Avoid leaning into panels. Keep your hands behind finger guards. If you need to use both hands, slow down and make it deliberate. On tight rooftop units, wind can move your arm just enough to touch something you didn’t mean to.

Step four is “prove the meter”. If you can, test your meter on a known live source, then do your test, then test again. That way you know your meter and leads didn’t fail mid-check.

On real sites, the safest habit you can build is reducing “free-hand” time inside live gear. If the job allows it and you’re qualified to do so, use clips or stable connection methods so you’re not holding two sharp probe tips in a tight space while balancing on a roof. The less your hands are moving, the lower your slip risk gets.

It also helps to control the environment as much as you can. If the panel is dark, sort the light first. If the panel is wet or you’re in weather, treat that as a stop sign unless the job is specifically designed for that condition and you’re authorised to work it. If you’re rushed, that’s also a condition. Rushing creates slips. Slips create arcs and blown boards.

Another “quiet safety win” is thinking about where your elbows and forearms are going, not just the probe tips. HVAC compartments are tight. You can be focused on the probe and still bump a live part with your arm. If you can’t maintain a clean working space, change your approach. Open access, move cables gently out of the way where appropriate, or step back and isolate.

For general electrical safety guidance in Australia, Safe Work Australia is a useful reference point for hazard awareness and safe systems of work: Safe Work Australia - workplace electrical safety information.

Finally, don’t underestimate documentation. Writing down what you tested and where you tested it makes you calmer and more consistent. It also stops the “did we already check that?” loop when you’re tired late in the day. Even a quick note like “supply present, voltage stable under load at test point used” can keep the job moving without guesswork.

Finally, remember the boring truth: a lot of HVAC electrical faults are heat and vibration problems. Loose terminals, cooked capacitors, and contactors that have had a hard life. Your testing routine should help you spot that early, not just confirm “it’s dead”.

That’s also why a routine matters more than a “fancy meter”. A high-end meter with messy technique is still risky. A decent, properly rated meter with calm technique is safer and often gives more consistent answers. The goal is repeatability. If you can repeat the same test safely and get the same result, you can trust the conclusion.

Common Multimeter Tests on HVAC Systems (Without the Drama)

This is the section most people want. You’ve got a system not running, the customer wants answers, and you need fast checks that don’t create new faults.

The goal here is not to turn one reading into a confident diagnosis. The goal is to confirm what’s true, eliminate the obvious, and decide whether you stay on electrical checks or move to control logic and mechanical/refrigeration troubleshooting.

It also helps to treat multimeter readings like “evidence”, not “opinions”. If your reading doesn’t match the symptom, don’t force it. Re-check the test point, re-check the setup, and confirm with a second method where appropriate. A lot of misdiagnosis comes from trusting one shaky reading taken in a rushed moment.

Voltage checks on 230–240V equipment

When a system won’t start, don’t assume the compressor is dead. First confirm supply. On a typical split system outdoor unit, you’re usually checking at the isolator and then at the unit terminals (only if you’re licensed and authorised for that work).

Start by confirming the supply is present. Then check whether the voltage stays stable under load. A supply that looks fine with no load can sag when the compressor tries to start. That can look like “bad compressor” when it’s actually a supply or connection issue.

Next, confirm what the control is doing. Many “no start” calls are actually “no call for cooling”. A controller issue, a safety open circuit, or a control power issue can stop the whole system before the compressor even gets a chance.

If you’re chasing an intermittent fault, it can help to think “where is the voltage being lost?” A loose isolator, a tired contactor, or a weak termination can show up as a normal reading on the supply side and a poor reading under load downstream. That’s why stable technique and repeatable test points matter more than rushing.

On some jobs, “voltage present” is only half the story. The more useful question is “voltage present where it needs to be, at the moment the unit tries to run?” If you can match the reading to the moment the unit attempts to start, you learn much faster whether you’re dealing with a control permission issue, a supply issue, or a load that’s failing under stress.

Continuity and proving dead

Continuity tests are useful, but they are the easiest way to get caught out if you forget one rule: continuity is for dead circuits only. If you test continuity on a live circuit, you can damage the meter and create a dangerous situation.

If you’re testing fuses, switches, or safety circuits, isolate properly first, confirm isolation, then test continuity. If your process is shaky, slow it down. This is where people get hurt when they “rush to help”.

Also remember that “no continuity” is not always “the part is dead” until you confirm you’re on the right points and the circuit is actually isolated. On some HVAC controls, you can be looking at a safety chain that only closes when the unit is in a specific state. The meter tells you the state in that moment, not the whole story.

Continuity can also mislead if you’re reading through parallel paths. Some circuits can show a “beep” because you’re seeing a path through a coil or another component, not a direct closed switch. If your continuity result doesn’t make sense, step back and confirm what else is connected. A calm method beats chasing a false “open circuit” for half an hour.

Resistance checks for coils, contactors, and motors

Resistance checks can tell you if something is open circuit, shorted, or wildly out of whack. For example, a contactor coil that’s open won’t pull in. A motor winding that’s obviously shorted is a hard stop. But don’t over-read resistance as a “perfect health score”.

Use resistance as one clue, then combine it with the symptoms. A compressor that hums then trips might still measure “something” on resistance, but it can still be mechanically locked. That’s why the test method matters as much as the reading.

In the real world, “borderline” components tend to show up as heat-related faults. A contactor coil that measures okay cold can still fail hot. A connection that looks fine can still drop voltage when it heats and expands. That’s why your notes and your pattern recognition matter, not just the number on the screen.

Another common trap is assuming resistance alone can confirm a “good motor”. A motor can read reasonably on resistance and still have issues that need the right test equipment and the right qualifications to confirm. If the job requires deeper electrical diagnostics beyond basic checks, treat that as a handover point instead of pushing into risk.

Capacitor checks without guessing

Capacitors are a common HVAC failure point. If your meter has capacitance mode, it can give you a quick pass/fail clue. But do it safely. Capacitors can hold charge. Discharge correctly as per safe practice, then test.

A failing capacitor can cause hard starting, high current draw, overheating, and nuisance trips. If a system starts sometimes and fails other times, capacitors and connections are always worth checking early.

Capacitor faults also love to disguise themselves as “compressor problems”. If the start event is ugly and the supply is stable, it’s worth checking the capacitor condition and the terminal tightness before you assume the worst. The goal is to rule out the simple failure points before the job becomes expensive.

Also be mindful of the human factor. Capacitors often sit in awkward positions. That’s where probe slips happen, and that’s where people touch something they shouldn’t while trying to get a reading. If you can’t access it cleanly and safely, change the access rather than forcing your hands into a bad angle.

Low voltage control checks (24V and sensor circuits)

On many systems, the control side is low voltage, but that doesn’t mean it’s “no risk”. A slip can still damage boards and cause expensive failures. When checking control voltage, be gentle with probe tips and avoid bridging terminals.

For sensors like thermistors, you’re often checking resistance. The key is consistency. Compare to the service manual where possible, and consider ambient temperature. A sensor reading that makes no sense compared to the conditions is a clue, not a final verdict.

It also helps to separate “sensor reading” from “wiring reality”. If a sensor value looks wrong, don’t skip straight to swapping it. Check connections, plug seating, and any obvious cable damage first. A loose plug can mimic a failed sensor and waste your time.

On control checks, the “best” reading is the one taken at a stable point without stressing the connector. If you need to push the probe tip in hard to get contact, you’re increasing your slip risk and you’re increasing the chance you damage the terminal. Calm contact, clean contact, then read.

Three-phase basics (only where you’re qualified)

On commercial gear, three-phase adds extra checks: supply balance, phase loss, and correct protections. A missing phase can cause motors to struggle, overheat, or trip. But three-phase work is not a “have a crack” area. If you’re not licensed for the testing and repair, treat it as a handover point.

Even if you’re only doing initial observations, remember that three-phase faults can escalate quickly. A motor running unbalanced can cook itself, and the “simple fault” becomes a replacement job. If you suspect phase issues, the safest move is to stop, document what you found, and escalate correctly.

From a workflow point of view, three-phase work rewards repeatability even more. If your test points change each time, your comparisons become useless. If your safe access changes, your risk changes. That’s why qualified techs often use consistent test locations and consistent routines rather than improvising inside panels.

If you’re building your kit around reliable, repeatable testing, start with the core meter range and work out from there: CAT-rated multimeters for HVAC electrical testing and fault finding in Australia.

The big win with common tests is doing them the same way every time. Same access point, same meter setup, same “prove the meter” habit. That consistency is what makes you faster without getting sloppy. It also makes your notes more useful, because you’re comparing like for like.

How to Choose a Multimeter Setup That Fits HVAC Work

There’s no perfect meter for everyone. The right choice depends on the work you actually do. If you’re mainly residential split systems, you still need safe ratings and decent leads, but your daily checks might focus on supply, capacitors, contactors, and control voltages.

If you’re on commercial rooftops and plant rooms, you want a setup that handles daily site conditions: cramped panels, vibration, heat, and jobs where you can’t afford flaky leads or confusing displays.

Two things make the biggest difference in real life. One is the safety rating and build quality. The other is how readable and stable the meter is when you’re on a ladder or a windy roof. If you’ve ever tried to read a cheap meter in bright sun, you know what I mean.

Think about the “small convenience” features that actually reduce risk. A clear backlight can stop you leaning into a panel for a better view. A stable auto-ranging behaviour can stop you flicking ranges while your probes are already in position. And a meter that feels solid in the hand usually leads to calmer movements, especially in tight compartments.

Also think about what makes you consistent. If the dial is confusing, you’ll hesitate. If the beep is weak, you’ll second-guess continuity. If the screen washes out in sunlight, you’ll lean into danger to read it. These aren’t luxury problems. They directly affect how you move around live gear and how calm your testing feels.

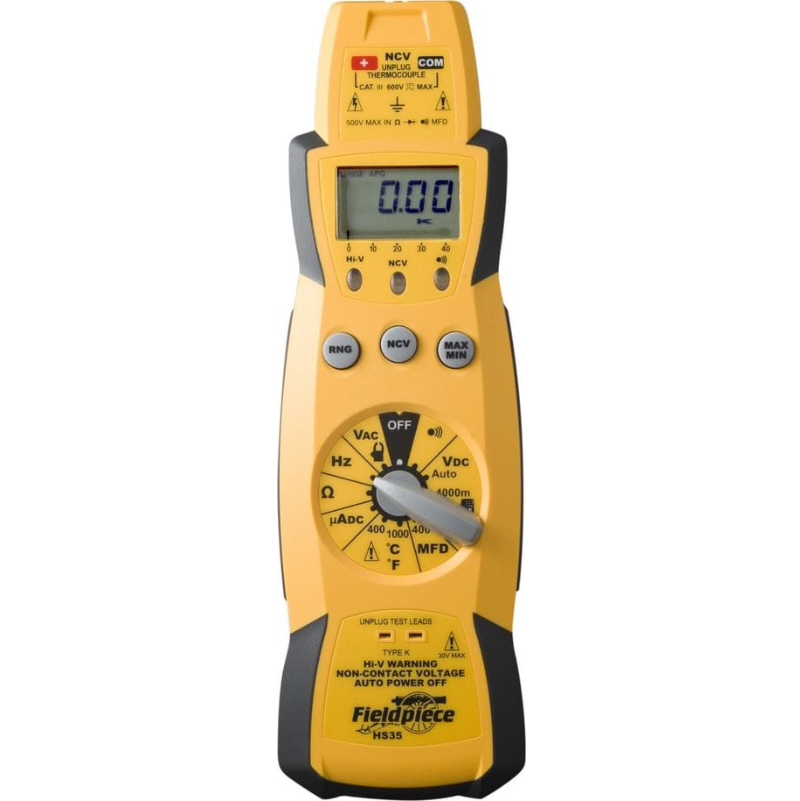

If you want a straightforward digital multimeter example that suits general service work, here’s a reference product you can review and compare against your needs: Digital multimeter for HVAC testing and safe fault-finding in Australia.

If you want a clamp-style option that suits common HVAC electrical checks where you need current readings as part of fault-finding, this is a relevant example product reference: HVAC clamp meter and multimeter for safe electrical diagnostics.

Then finish the setup the right way. Good leads reduce slips. Good probe control reduces bridging. And a consistent lead kit means you’re not mixing random parts that don’t fit properly. If you only upgrade one thing this month, leads are a smart place to start: Silicone test lead kit to improve safety and reliability in HVAC testing.

If you’re running a team, consistency matters even more. When everyone uses different leads, different probes, and different “habits”, troubleshooting becomes messy. The same fault can look different depending on who tested it. Standardising the setup makes training easier and makes readings easier to trust across the team.

The Quiet Mistakes That Cause the Most Trouble

Most multimeter issues aren’t dramatic. They’re small mistakes that waste time, create wrong diagnoses, or damage equipment.

One is testing in the wrong mode. If you’re on continuity when you think you’re on volts, you can get a reading that makes no sense and chase the wrong fault. Slow down and confirm the dial every time.

Another is probing too deep. If your probe tip is long and sharp, it’s easy to bridge terminals in a contactor or across a board connector. That can turn a simple diagnosis into a blown board.

Another is ignoring heat and airflow issues. A compressor that’s tripping can be electrical, but it can also be head pressure and heat. If the condenser is blocked and the unit is cooking itself, you’ll see symptoms that look “electrical” even when the root cause is heat rejection and maintenance.

And the classic: trusting old leads because “they still work”. Leads can work right up until the day they don’t, and that day tends to be when you’re in a hurry. Treat leads as consumables. Replace them before they become the weak link.

A very common “quiet mistake” is leaving the leads in the current (A) input port after one job, then going to do a voltage check on the next job. Best case, you pop a fuse and lose time. Worst case, you create a dangerous situation. A simple habit fixes it: at pack-up, reset the meter to a safe default and put the leads back in the standard voltage/ohms ports.

Another sneaky one is reading too much into a single number. A voltage reading that’s “close enough” might still be a problem once the unit tries to start. A resistance reading that looks normal might still hide a mechanical fault. If the symptom and the reading don’t agree, don’t force the story to fit. Re-check, use a second test that confirms the same thing, and only then call it.

Auto-ranging can also waste time if you’re not ready for it. Some meters take a moment to settle. If you pull the probes away too fast, you’ll think the voltage is “jumping” when it’s just the meter deciding the range. Calm technique fixes this. Hold steady, let it settle, then read.

One more mistake is treating the first reading as the final reading. On HVAC gear, conditions change. A unit might look normal until the compressor tries to start. A contactor might look fine until it heats up. If the fault is intermittent, you often need to test at the moment of failure, not when everything is calm and idle.

Make Your Testing Faster, Safer, and More Consistent

If you want your electrical checks to be quicker and safer, keep it simple. Use one trusted meter. Use good leads. Use the same routine every job. Prove the meter. Confirm the circuit type. Then test with control.

If you’re not sure what CAT rating and lead setup suits the work you do most, talk to our team to confirm compatibility and the best fit for HVAC testing. If you tell us what gear you work on (residential splits, ducted, rooftop packaged units, refrigeration), we can point you to a setup that matches the real job, not just the brochure.

Start with the main range here and narrow down by your day-to-day needs: Multimeters for HVAC testing and electrical safety on Australian job sites.

The safest upgrade you can make is not always buying something new. It’s tightening the routine. If you do a quick lead check, set the meter correctly, take a stable position, and prove the meter before and after, you’ll avoid most “meter drama” and most risky moments. That routine also makes your diagnosis faster, because your readings are consistent enough to trust.
