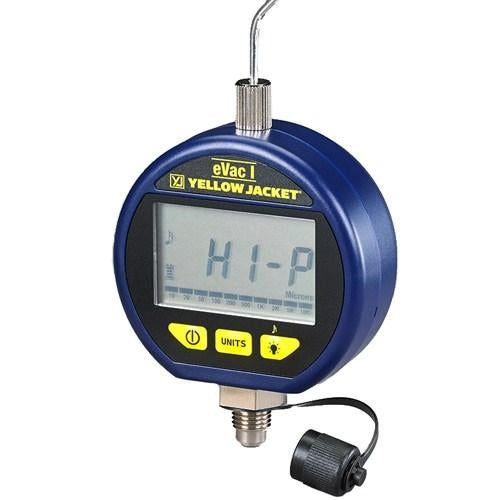

Yellow Jacket 69047 EVac I Digital Vacuum Gauge — 0 to 25,000 Micron | HVAC/R
The Yellow Jacket 69047 EVac I is a compact, rugged digital vacuum gauge designed for HVAC/R technicians who need accurate, easy-to-read vacuum measurement during system evacuation. It measures 0 to 25,000 microns with 1-micron resolution and 5% accuracy (±5 microns), displays readings in five selectable units, and includes an automatic oil sensor to detect oil contamination in the vacuum line. Battery life is up to 300 hours on a single 9V battery.
The EVac I can be field calibrated without special equipment, and built-in memory retains all previous settings. At approximately the size of a manifold gauge, it is compact enough to carry on every job.
Important: System evacuation and refrigerant handling requires appropriate trade qualifications. Confirm licensing and compliance requirements with the relevant authority in your state or territory before undertaking refrigerant work.
Key Features
- Measuring range: 0 to 25,000 microns
- Resolution: 1 micron
- Accuracy: 5% of reading ±5 microns
- Five selectable vacuum units: microns, Pascals, millibar, milliTorr, mmHg
- Automatic oil sensor — detects oil contamination in the vacuum line
- Large, high-visibility backlit LCD
- Analogue vacuum level bar graph
- Field calibration — no special equipment required
- Built-in memory retains all previous settings
- Rugged, compact design — approximately manifold gauge size
- Battery: 9V alkaline (9V lithium recommended for low-temperature operation)
- Battery life: up to 300 hours
- Operating temperature: -12°C to 50°C
- Weight: 170g (including battery and swivel hook)
- Dimensions: 9cm x 7.5cm x 3cm
- 12-month manufacturer’s warranty
Best For
- HVAC/R technicians monitoring vacuum levels during system evacuation
- Technicians who need a compact, long-battery-life vacuum gauge for everyday field use
- Applications where oil contamination detection in the vacuum line is useful
- Technicians who want field calibration capability without sending the gauge for service
Check Before Ordering
- Confirm connection fitting compatibility with your vacuum pump and system service ports
- 9V lithium battery recommended for low-temperature operation (freezer environments)
- System evacuation requires appropriate trade qualifications — confirm licensing requirements in your state or territory
- Warranty: 12 months — confirm current terms at time of purchase
Frequently Asked Questions
What does the automatic oil sensor do?
The automatic oil sensor detects oil contamination in the vacuum line, alerting you to potential pump oil migration into the system being evacuated.
Can the EVac I be calibrated in the field?
Yes — the EVac I supports field calibration without special equipment. Confirm the calibration procedure against the Yellow Jacket 69047 documentation.
What battery does the EVac I use?
9V alkaline battery — up to 300-hour life. Yellow Jacket recommends a 9V lithium battery for low-temperature operation.
What is the warranty?
12-month manufacturer’s warranty. Confirm current terms with HVAC Trade Supply at time of purchase.
Browse our full vacuum gauge range or contact our team for advice on the right vacuum gauge for your application.
